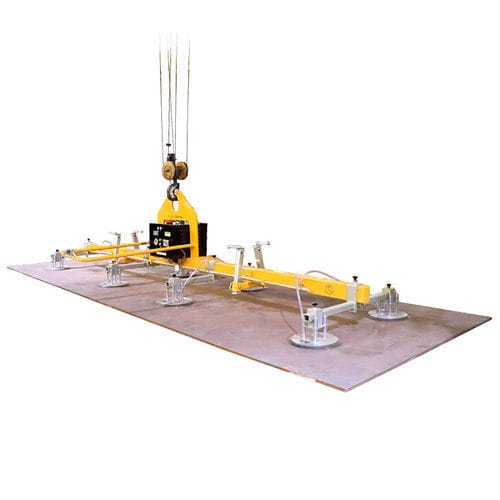

Metal sheet vacuum lifting device AEVLP8-2000

for aluminum platefor platesfor stainless steel sheet

General
An electric pump motor drives the Aardwolf electric vacuum lifter AEVLP8-2000, designed for handling large metal sheets. Adjustable main beam and vacuum pads accommodate various sheet sizes. Working load limit (WLL): 2000 kg; maximum material size: 6000 × 1800 mm; pad diameter: 350 mm; number of pads: 8.

Key features

• Audio-visual safety alarm with dedicated LiPo battery.
• Pressure-switch control automatically restarts the vacuum pump in case of pressure loss.
• Adjustable beam and pad spacing for different sheet widths and profiles.
• Designed for suspension from overhead cranes or handling booms.

Technical specifications

• Brand: Aardwolf
• Model: AEVLP8-2000
• Working load limit (WLL): 2000 kg (4,408 lb)
• Maximum material size: 6000 × 1800 mm (236.2 in × 70.9 in)
• Number of pads: 8
• Pad diameter: 350 mm (14 in)
• Net weight: 370 kg (816 lb)
• Packaging dimensions: 5000 × 1200 × 1300 mm (196.9 in × 47.2 in × 51.2 in)
• Vacuum flow rate: 7.6 / 8.7 m3/hour
• Motor input supply: AC 380 V, 3-phase, 50/60 Hz

Battery information for alarm system

• Battery: 3.7 V LiPo, 2000 mAh × 1
• Adapter: DC 5V-1A
• Standby time: 720 hours
• Charging time: 2 hours; charging cycle: ~1000 times
• Non-stop working time (alarm): 7 hours
• Warranty (alarm system): 6 months

Applications

• Handling large steel or aluminum sheets in metalworking and fabrication facilities
• Loading and unloading plate processing machines, presses and laser cutters
• Steel service centers, warehouses and assembly lines
