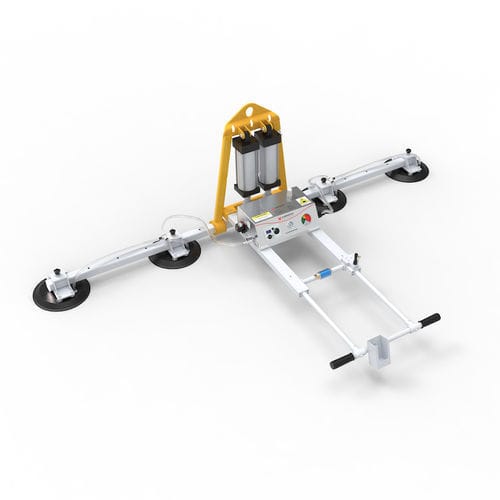

4-point vacuum lifting device AVGLP4-400L

glass plateverticalhorizontal

Product overview
The Aardwolf Vacuum Glass Lifter (AVGLP4-400L) is a pneumatically powered lifter for handling glass panels, including rough-surfaced panels. Rated for horizontal loads up to 400 kg and vertical loads up to 200 kg, the unit integrates a high-performance vacuum system with a built-in vacuum tank, automatic vacuum pumping, an acoustic/visual alarm and an ON/OFF slide valve for rapid attachment and release. Intended for glass fabrication, construction and manufacturing environments. Warranty: 12 months.

Key features

• Pneumatic tilt 0°–90° for precise vertical–horizontal positioning
• Built-in vacuum tank to retain vacuum during power interruptions
• Automatic vacuum pumping to restore vacuum pressure if lost
• Integrated acoustic and visual alarm for immediate alerts
• ON/OFF slide valve for fast panel attachment and release
• Suitable for rough-surfaced glass panels
• Designed for use in fabrication, installation and production workflows

Specifications (metric / imperial)
Number of pads: 4
Pad diameter (seal to seal): 300 mm / 11.8"
Working load limit: Vertical: 200 kg; Horizontal: 400 kg (441 lb / 882 lb)
Net weight: 82 kg (181 lb)
Gross weight: 140 kg (309 lb)
Packaging dimensions: L 2580 x W 430 x H 960 mm (101.6" x 16.9" x 37.8")

Battery (lifter)
Battery code: GBA 12V 2.0Ah Bosch
Type: Lithium‑ION
Voltage: 12V
Capacity: 2.0Ah
Quantity: 1
Continuous operation time (mode-saving pressure): 2 hours
Working time (mode-saving pressure): 6 hours
Continuous operation time (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours

Battery charger
Charger code: GAL 12V-40 Bosch
Input voltage: 220–240 VAC
Output voltage: 12V
Output current: 4.0A
Quantity: 1
Full charge time: 0.5 hour
Charger weight: 460 g

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)

Why choose the Aardwolf AVGLP4-400L?

• Increased productivity through 0°–90° pneumatic tilting and rapid slide-valve attachment
• Continuous safety ensured by built-in vacuum tank, automatic pumping and alarm system
• Versatility to handle a range of glass sizes and rough surfaces
• Low maintenance due to pneumatic design and replaceable battery/chassis components
• 12-month warranty for standard commercial use

Technical / product specifications

• Model: AVGLP4-400L
• Brand: Aardwolf
• Number of pads: 4
• Pad seal-to-seal diameter: 300 mm
• Working load limit (vertical): 200 kg
• Working load limit (horizontal): 400 kg
• Net weight: 82 kg
• Gross weight: 140 kg
• Packaging dimensions: L 2580 x W 430 x H 960 mm
• Battery: GBA 12V 2.0Ah Bosch (Li‑ION), qty 1
• Charger: GAL 12V-40 Bosch (Input 220–240 VAC, Output 12V, 4.0A)
• Air consumption: 180 L/min
• Supply air pressure: 5 bar (72 psi)
• Tilt: Pneumatic 0°–90°
• Safety: Built-in vacuum tank, automatic vacuum pumping, acoustic/visual alarm
• Slide valve: ON/OFF for attachment/release
• Warranty: 12 months
