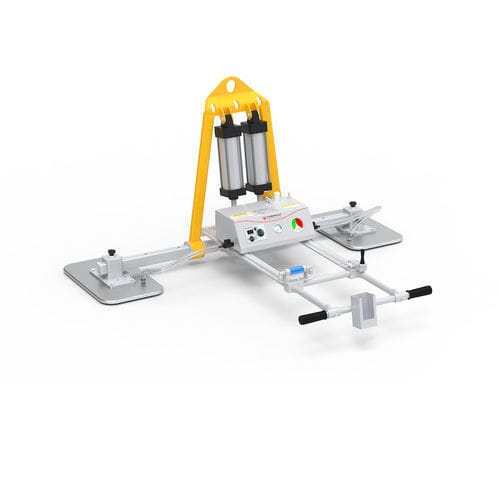

Marble vacuum lifting device AVLP2-500

for platesfor slabsfor stone slabs

General
This vacuum lifter AVLP2-500 is engineered for handling smooth and rough marble and granite slabs. It uses pneumatic actuation and a dedicated vacuum system to lift, hold and tilt heavy stone panels for precise positioning in workshops, on construction sites and in stone fabrication facilities.

Features

• Pneumatic vertical–horizontal tilting 0–90° via a pneumatic piston.
• Vacuum tank provides temporary holding in case of sudden pump power loss.
• Audio/visual alarm system powered by a rechargeable 12V Li‑on battery (alarm electronics also reference a 3.7 V LiPo supply).
• Slide valve with ON/OFF positions for safe attaching and releasing of material.

Specifications
Metric | Imperial
Number of pads: 2 | -
Pad size: 500 x 300 mm | 19.7" x 11.8"
Working load limit: Vertical: 250 kg; Horizontal: 500 kg | 551 lb; 1102 lb
Net weight: 80 kg | 176 lb
Gross weight: 109 kg | 240 lb
Packaging dimensions: L:1480 x W:390 x H:960 mm | 58.3" x 15.3" x 37.8"

Battery information for the alarm system
Item | Specification
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh × 1
Standby time: 720 hours
Charging cycle: 1000 times
Charging time: 2 hours
Non-stop working time: 7 hours

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)

Technical characteristics

• Product code: AVLP2-500
• Brand: Aardwolf
• Number of pads: 2
• Pad size: 500 x 300 mm
• Working load limit (WLL): Vertical 250 kg; Horizontal 500 kg
• Pneumatic vertical–horizontal tilt 0–90°
• Vacuum tank for safety on pump power loss
• Audio/visual alarm (rechargeable 12V Li‑on) — alarm electronics list 3.7 V LiPo 2000 mAh
• Slide valve ON/OFF for attach/release
• Compressed air: 180 L/min at 5 bars (72 psi)
