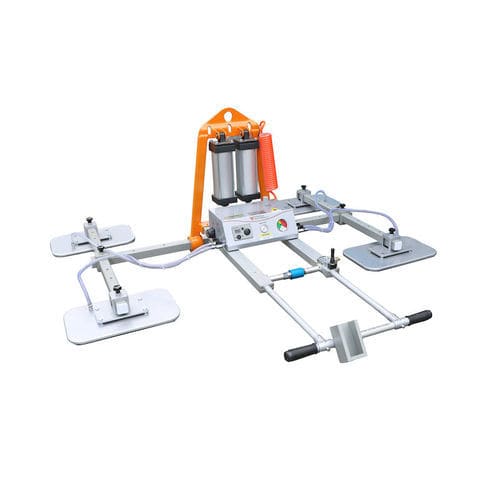

4-point vacuum lifting device AVLP4-P-1000

for slabsfor marblefor stone slabs

General
The AVLP4-P-1000 vacuum lifter is engineered for precise, energy-efficient handling of marble and granite slabs (smooth or textured). It offers pneumatic 0°–90° tilting, configurable pad layout and integrated safety and alarm systems suitable for workshops, construction sites and manufacturing plants.

Features

• Pneumatic 0°–90° vertical-to-horizontal tilt for versatile handling.
• Dual operation modes:
  • Audio alarm mode: buzzer activates when vacuum pressure drops below 64 kPa.
  • Energy saver mode: pump automatically cycles to maintain required vacuum and minimize air and energy consumption.
• High-vacuum performance to reduce slippage and material damage.
• Adjustable handle extensions from 76.2 mm to 106.68 mm for operator comfort.
• Aluminum handle enclosure protecting air and vacuum lines.
• Slide valve with ON/OFF for quick material release.
• Independent rechargeable battery-powered monitoring and alarm system.
• Adjustable/rotating pad configuration to adapt to different shapes and sizes.

Specifications
Metric | Imperial
Number of pads: 4 | -
Pad size: 500 x 300 mm | 19.7" x 11.8"
Working load limit: Vertical: 500 kg; Horizontal: 1000 kg | 1102 lb; 2204 lb
Net weight: 104 kg | 229 lb
Gross weight: 144 kg | 317 lb
Packaging dimensions: L.1680 x W.430 x H.960 mm | 66.1" x 16.9" x 37.8"

Battery information for the alarm system
Battery code: GBA 12V 2.0Ah Bosch
Battery type: Lithium-ion
Voltage: 12 V
Capacity: 2.0 Ah
Quantity: 1
Continuous operation (energy saver mode): 2 hours
Working time (energy saver mode): 6 hours
Continuous operation (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours

Battery charger
Battery code: GAL 12V-40 Bosch
Input voltage: 220–240 VAC
Output voltage: 12 V
Output current: 4.0 A
Quantity: 1
Full charge time: 0.5 hour
Weight: 460 g

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bar (72 psi)
