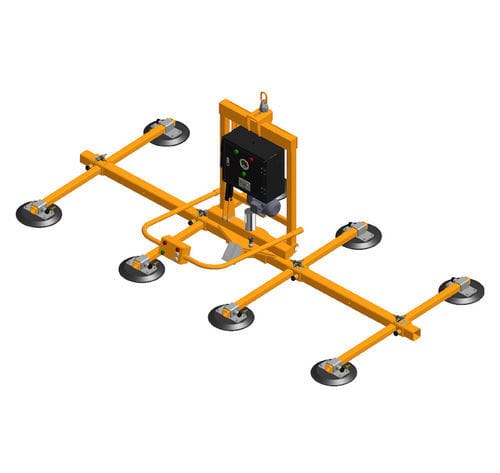

Glass plate vacuum lifting device AEPVGL-MR

for sheetsfor flat partsadjustable

General
The electric vacuum glass lifter AEPVGL-MR is engineered for safe, efficient handling of flat glass panels and similar sheet materials. It combines an electric drive, adjustable suction pads and an integrated control on the handle to perform lifting, tilting and rotation operations with precision.

Features

• Adjustable suction pads to accommodate different material sizes and shapes.
• Wired control box on the handle for tilting, grip/release and actuator control.
• ON/OFF sliding valve for secure attach/release of loads.
• Automatic vacuum pump activation in the event of vacuum loss for added safety.
• 12V linear actuator for controlled 90° tilting and 360° manual rotation.

Specifications
Metric — Imperial
Pad diameter: 300 mm overall; 280 mm seal to seal — 11.8" / 11"
Tilting: 90 degrees — -
Manual rotation: 360 degrees — -
Working load limit (WLL): 500 kg — 1102 lb
Net weight: 204 kg — 450 lb
Packaging dimensions: 3100 x 1450 x 510 mm — 122" x 57" x 20"
Electric supply: 220V-50Hz, IP67 (3P)
Linear actuator for tilting: 12V

Technical characteristics

• Model: AEPVGL-MR
• Designed for handling flat glass and sheet materials with adjustable suction pads
• Pad diameter: 300 mm overall; 280 mm seal to seal
• Tilting: 90° controlled by 12V linear actuator
• Manual rotation: 360°
• Working load limit (WLL): 500 kg (1102 lb)
• Net weight: 204 kg (450 lb)
• Packaging: 3100 x 1450 x 510 mm (122" x 57" x 20")
• Electric supply: 220V-50Hz, IP67 (3P)
• Safety: automatic vacuum pump activation on vacuum loss; ON/OFF sliding valve for secure release
