Resistive touch screen panel PC R06IAN3S-PMA1

TFT LCD6.5"Intel® Processor N100

Overview

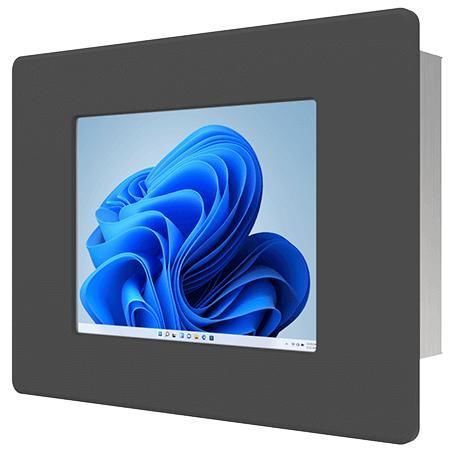

The Winmate R06IAN3S-PMA1 is a 6.5-inch panel-mount industrial Panel PC for machine control, factory automation and operator HMI. It combines a 6.5-inch SVGA TFT, Intel® Alder Lake‑N (N100/N150 family) processing, flexible I/O and dual 2.5 Gb Ethernet in a fanless metal enclosure for continuous field operation and easy integration.

Key Features

• 6.5-inch SVGA TFT display, 700 nits
• Intel® Alder Lake‑N N150 (N100 family variants noted)
• 1 x SO‑DIMM DDR5‑4800 (up to 16 GB)
• 2 x Intel® 2.5 Gigabit Ethernet
• Video & I/O: HDMI (optional), USB 3.2 Type‑C with DP‑Alt, USB 3.2 Type‑A ports, USB 2.0, multiple COM ports
• Panel mount (default); VESA mount optional; fanless metal housing; TPM 2.0

Display

• Size: 6.5 inches (SVGA 640 x 480)
• Brightness: 700 nits; Contrast: 600:1
• View angles: 80/80/70/70; Active area: 132.48 x 99.36 mm
• Touch options: resistive touch (optional) or protection glass without touch (optional)

System Specification

• Processor: Intel® Processor N100 / Alder Lake‑N family (N100/N150), up to 3.40 GHz
• Memory: 1 x SO‑DIMM DDR5‑4800 (8 GB default, 16 GB optional)
• Storage: 1 x M.2 2280 M‑Key NVMe SSD (128 GB default; optional 256/512 GB, 1/2/4 TB); optional SATA III for 2.5" drive when NVMe not present
• Ethernet: 2 x Intel® 2.5 Gigabit controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit / Windows 11 Pro 64-bit / Linux Ubuntu 24.04 (Linux: Wake on Touch not supported)
• WLAN/BT: optional modules

Mechanical

• Dimensions: 218 x 164 x 55.6 mm; Cut-out: 192 x 144 mm
• Weight: 1.4 kg; Enclosure: metal housing; Cooling: fanless
• Mounting: panel mount (default); VESA mount optional

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non‑condensing
• Front protection: IP65

I/O Ports

• USB: up to 2 x USB 3.2 Type‑A (Gen1/Gen2 depending on configuration), 1 x USB 3.2 Gen2 Type‑C (DP‑Alt)
• Additional USB: 4 x USB 2.0 (configuration dependent)
• Serial: up to 4 x COM (configurations include RS232/422/485)
• LAN: 2 x 2.5 GbE RJ45
• Video: HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M‑Key (NVMe), 1 x M.2 2230 E‑Key (Wi‑Fi)
• Indicators: power LED, storage LED
• Power input: 12V DC via 2.5φ DC jack

Power & Accessories

• Power rating: 12V DC; adapter: 12V 50W
• Accessories: 100~240V AC to DC adapter (optional), power cord, VESA screws, mounting clips

Control

• 1 x power button; 1 x reset button

Certifications

• CE
• FCC

Technical specifications

• Model: R06IAN3S-PMA1
• Display: 6.5-inch SVGA (640 x 480), 700 nits
• CPU: Intel® N100 / Alder Lake‑N N150 family
• Memory: 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• Storage: M.2 NVMe (128 GB default, up to 4 TB); optional SATA III for 2.5" drive
• LAN: 2 x 2.5 GbE
• USB: Type‑C (DP‑Alt), Type‑A USB 3.2, USB 2.0
• Serial: RS232/422/485 options
• Mounting: Panel mount (default), VESA optional
• Front IP: IP65
• Operating temp: 0°C to 50°C
• Dimensions / Weight: 218 x 164 x 55.6 mm / 1.4 kg
• Certifications: CE, FCC
