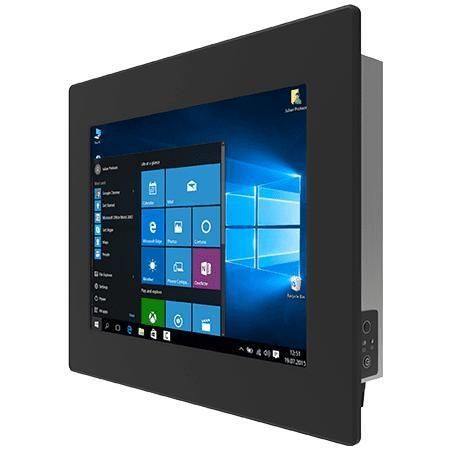

Resistive touch screen panel PC R12IT3S-PMM2

TFT LCD12.1"Intel® Core™ i5-1135G7

Overview
Winmate R12IT3S-PMM2 is a 12.1-inch panel mount Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). It is engineered for machine control, factory automation and operator HMI with fanless cooling and low power consumption for continuous industrial operation.

Key features

• 12.1-inch TFT XGA display (1024 x 768), 500 nits
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless design and efficient heat dissipation for 24/7 operation
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5 Gbps)
• M.2 storage: Key M slot for 2242 SATA III and M.2 2280 NVMe support; optional 2.5" SATA bay

Highlights

• Touch options: resistive touch or protective glass without touch
• Flexible mounting: front panel mount and VESA mount
• Industrial metal housing and TPM 2.0 for security
• Optional WLAN/Bluetooth and multiple I/O including USB3.2, RS232/422/485, HDMI

Certifications
CE, FCC

Technical specifications

• Model: R12IT3S-PMM2
• Display size/resolution: 12.1 inches, 1024 x 768 (XGA)
• Brightness / Contrast / Viewing angles: 500 nits / 1000:1 / 89/89/89/89
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default; up to 32GB)
• Storage: M.2 2280 NVMe SSD (128GB default; up to 2TB) + optional 2.5" SATA III up to 2TB
• Ethernet: 2 x Intel® 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (Linux does not support Wake on Touch)
• Dimensions (W x H x D): 324 x 274 x 67 mm; Cut out: 302 x 234.3 mm
• Weight: 2.6 kg
• Operating temp/humidity: 0°C to 50°C; 10% to 90% RH non-condensing
• Power input: 12V DC (adapter 12V 120W)
• I/O: 2 x USB3.2 Gen2 Type-A; 1 x RS232/422/485 + 1 x RS232; 2 x 2.5G LAN; optional HDMI 2.0; 2 x speakers
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
