Overview

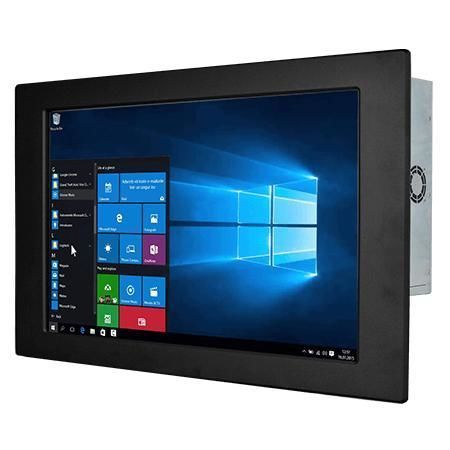

Winmate W24IF7T-PMA2 is a 24-inch panel-mount Panel PC engineered for machine control, factory automation and operator HMI. It supports Intel® 9th Gen Core™ i3 / i5 / i7 processors, flexible storage (M.2 and 2.5" SATA), multiple I/Os, TPM 2.0 security and panel or VESA mounting options for industrial installations.

Key Features

• 24.0" FHD (1920 x 1080) display, 250 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 processor options
• Flexible storage: M.2 NVMe/SATA + 2 x 2.5" SATA (supports RAID 0/1)
• Multiple I/O: 4 x USB 3.2 Gen1, serial ports, 2 x Gigabit LAN
• 12V DC input (Din4 pin); DisplayPort and HDMI video outputs
• TPM 2.0 and optional WLAN/Bluetooth via M.2 slot

Highlights

• Optional resistive touch or protection glass (non-touch)
• Low-power design with active fan cooling for continuous operation
• Panel-mount default with optional rear/VESA mounting for varied installations

Display

• Size: 24.0 inches
• Touch/Glass: Resistive touch (optional); Protection glass without touch (optional)
• Resolution: 1920 x 1080
• Brightness: 250 nits; Contrast ratio: 3000:1
• View angles: 89/89/89/89; Active area: 527.04 x 296.46 mm

System Specification

• CPU: Default Intel Core i7-9700TE (1.8 GHz, up to 3.8 GHz); optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; options up to 2 TB; M.2 2280 M-Key (NVMe/SATA) plus 2 x SATA III
• Ethernet: Dual Intel® Gigabit controllers (I211-AT + I219-LM)
• Security & OS: TPM 2.0; Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu options

Mechanical

• Dimensions: 606 x 376 x 76 mm; Cut-out: 560.5 x 327.5 mm
• Weight: 8.7 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fan design

Environment

• Operating humidity: 10%–90% RH (non-condensing)
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (configurable) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA); M.2 2230 E-Key (Wi‑Fi); optional PCIe 3.0 x16
• Indicators: Power and storage LEDs; Brightness adjustment knob
• Power input: 1 x 12V DC (Din4 pin)

Control & Accessories

• Buttons: Power and Reset
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual (depending on distribution)

Technical specifications

• Model: W24IF7T-PMA2
• Display: 24.0" FHD (1920 x 1080), 250 nits, 3000:1
• CPU Options: i7-9700TE / i5-9500TE / i3-9100TE
• Memory: Up to 64 GB DDR4 SO-DIMM
• Storage: M.2 NVMe/SATA + 2 x SATA III (2.5") supporting RAID
• Network: Dual Intel Gigabit LAN
• Security: TPM 2.0
• OS Support: Windows 10 IoT Enterprise (64-bit), Linux Ubuntu (optional)
• Mounting: Panel mount default, VESA optional
• Operating range: 0°C to 50°C, 10%–90% RH non-condensing
• Certifications: CE, FCC
