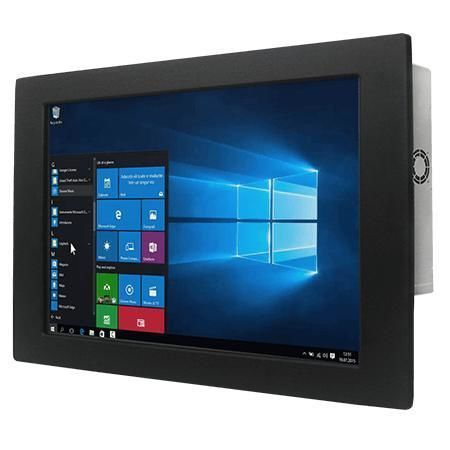

Resistive touch screen panel PC W18IF7T-PMA2

TFT LCD18.5"9th Generation Intel® Core™

Overview
Winmate W18IF7T-PMA2 is an 18.5" panel-mount Panel PC powered by Intel® 9th Generation Core™ i3/i5/i7 (Coffee Lake Refresh). Intended for machine control, factory automation and operator HMI, it combines flexible storage, multiple I/O and industrial-grade metal housing for OEM and integrator applications.

Key Features

• 18.5" display, 1366 x 768 resolution, 450 nits
• Intel® 9th Gen Core™ i7/i5/i3 (TE series) processor options
• Flexible storage: M.2 NVMe/SATA and 2.5" SATA bays; optional RAID 0/1
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, serial ports, DP (optional HDMI)
• 12 V DC input (Din4 pin); TPM 2.0

Display

• Size: 18.5 inches
• Resolution: 1366 x 768
• Brightness: 450 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Active area: 409.8 x 230.4 mm
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)

System Specification

• Processor: Intel® Core™ i7-9700TE (default), optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB/2 TB; M.2 2280 M-Key (NVMe/SATA) + M.2 2242/2230 for Wi‑Fi
• Ethernet: 2 x Intel® Gigabit LAN
• OS: Windows 10 IoT Enterprise (64-bit) or Linux (optional)
• WLAN / Bluetooth: optional via M.2 module

Mechanical

• Dimensions: 520 x 340 x 70 mm
• Cut out: 462 x 285 mm
• Weight: approx. 5.3 kg
• Mounting: Panel mount (default); VESA optional
• Enclosure: Metal housing; cooling: fan design

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10%–90% RH, non-condensing

Certification

• CE
• FCC

IO Ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key (Wi‑Fi), optional PCIe 3.0 x16
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input: 1 x 12V DC Din4 pin connector

Control

• Buttons: 1 x Power button; 1 x Reset button

Accessory

• 100~240V AC to DC adapter
• Power cord, VESA screws, mounting clips
• Driver CD & manual (depending on configuration)

Technical specifications

• Model: W18IF7T-PMA2
• Brand: Winmate
• Display: 18.5", 1366 x 768, 450 nits, 1000:1
• CPU options: Intel® Core™ i7-9700TE / i5-9500TE / i3-9100TE
• Memory: Up to 64 GB (2 x SO-DIMM)
• Storage: M.2 NVMe/SATA up to multiple TB + 2 x SATA III for 2.5" drives; RAID optional
• I/O: 4 x USB3.2 Gen1, 2 x Gigabit LAN, serial, DP1.2, optional HDMI
• Power: 12V DC Din4 pin
• Dimensions / Weight: 520 x 340 x 70 mm / ~5.3 kg
• Operating range: 0°C to 50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
