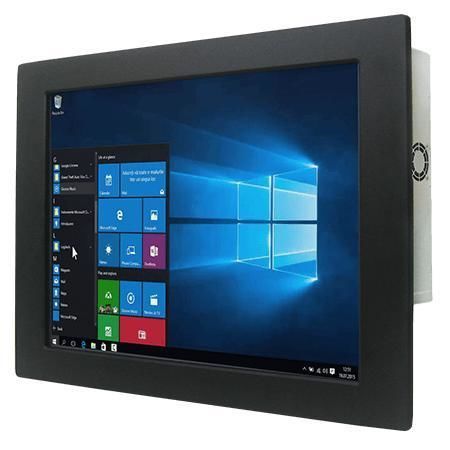

Resistive touch screen panel PC W15IAD7T-PMA2

15.6"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

Overview
Winmate W15IAD7T-PMA2 is a 15.6-inch panel-mount Panel PC based on 12th/14th Gen Intel® Core™ (Alder Lake / Raptor Lake T) processors. Designed for machine control, factory automation and operator HMI, it provides configurable CPU options, DDR5 memory, dual 2.5GbE and flexible storage for long-lifecycle industrial deployments.

Key features

• 15.6-inch display, 1366 x 768, 400 nits
• Intel® Core™ i3/i5/i7/i9 options (Alder Lake / Raptor Lake T)
• 2 x SO-DIMM DDR5-4800 up to 64GB
• Integrated dual 2.5 Gigabit Ethernet
• Multi-display support: DP1.4a (DP++) default; HDMI 2.0b optional
• 4 x USB 3.2 Gen2x1, serial ports, audio
• 12 V DC input (Din4 pin connector)

Display and input options

• Resistive touch or protection glass (both optional)
• Active area 344.232 x 195.536 mm; viewing angles 85/85/80/80

System and performance

• Intel® R680E chipset; TPM 2.0
• Storage: 128GB SSD default; NVMe M.2 2280 and optional 2 x SATA III (2.5") support
• OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 (Wake on Touch not supported on Linux)

I/O and expansion

• 2 x M.2 (2280 M-Key NVMe, 2230 E-Key for WLAN)
• 2 x 2.5 GbE RJ45, DP1.4a, optional HDMI 2.0b
• Serial: RS232/422/485 configurable + RS232

Mechanical and environment

• Dimensions 400 x 280 x 84.5 mm; cut-out 375 x 238 mm; weight 3.9 kg
• Metal housing, fan cooling; operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing

Certifications and accessories

• CE, FCC
• Accessories: 100~240V AC-DC adapter, power cord, VESA screws, mounting clips; optional 12V 220W adapter

Technical specifications

• Model: W15IAD7T-PMA2
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz up to 64GB
• Video: DP1.4a up to 4096x2160@60Hz
• Power input: 1 x 12V DC (Din4)
