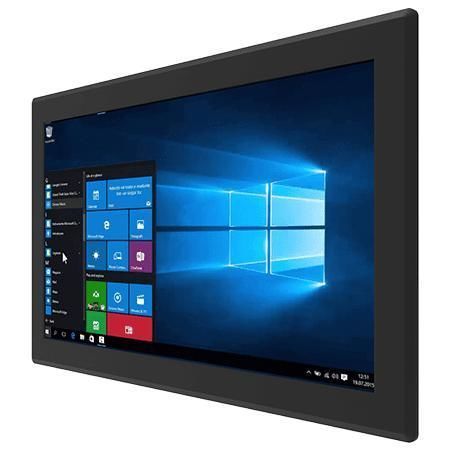

Resistive touch screen panel PC W24IT3S-PMA2

TFT LCD24"Intel® Core™ i5-1135G7

Summary
The W24IT3S-PMA2 is a 24.0-inch panel-mount Panel PC powered by Intel® Core™ i5-1135G7. Engineered for machine control, factory automation and operator HMI, it provides a fanless thermal design, industrial metal housing and multiple mounting and expansion options for system integrators and OEMs.

Key Features

• 24.0-inch TFT display, 1920 x 1080 resolution
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Integrated dual 2.5G Ethernet (2 x RJ45)
• M.2 expansion: Key M for M.2 2242 SATA; optional M.2 2280 NVMe

Overview
Surface options include resistive touch or protection glass without touch. Default mounting is panel-mount (front installation with rear clips), optional VESA mounting supported. Metal enclosure and fanless design suit continuous operation in industrial environments. Optional WLAN/Bluetooth modules and TPM 2.0 are supported. Multiple OS choices available (Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 — optional).

Certifications

• CE
• FCC

Technical specifications

• Display - Size: 24.0 inches
• Display - Touch / Glass: Resistive Touch (Optional); Protection Glass without touch (Optional)
• Display - Resolution: 1920 x 1080
• Display - Brightness: 250 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89/89/89/89
• Display - Active Area: 527.04 x 296.46 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB default; optional 8/16/32GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128GB SSD default; optional 256/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN/BT: Support via M.2 2230 E-Key (optional)
• Mechanical - Dimensions: 606 x 376 x 77 mm
• Mechanical - Cut out: 560.4 x 327.6 mm
• Weight: 8.7 kg
• Mounting: Panel mount (default); VESA (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO - USB: 2 x USB3.2 Gen2x1 (Type-A)
• IO - Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• IO - Video: 1 x HDMI 2.0 (optional)
• IO - Audio: 2 x Speaker
• IO - Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: Power LED; Storage LED
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack
• Adapter: 12V 120W (accessory)
• Buttons: 1 x Power; 1 x Reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
