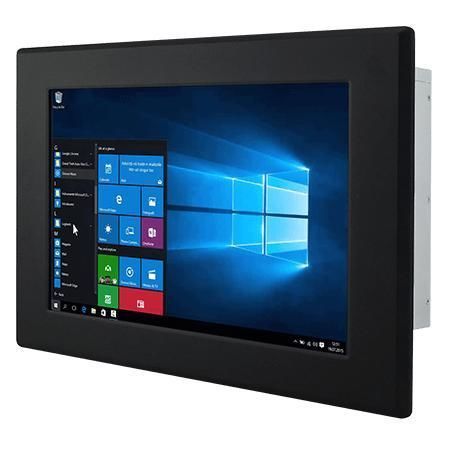

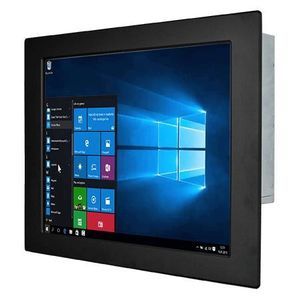

Resistive touch screen panel PC W15IP7T-PMA2

15.6"Intel® Pentium® N42001366 x 768

Overview
Winmate W15IP7T-PMA2 is a 15.6-inch Panel Mount industrial Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI, it offers flexible storage options, multiple I/O ports, and 4K display output support for industrial and embedded applications.

Key Features

• Intel® Pentium® N4200 Apollo Lake Processor (1.10 GHz, up to 2.5 GHz)
• 15.6" display with 1366 x 768 native resolution
• Flexible storage: one 2.5" HDD and one SSD socket; M.2 slots and SATA options
• Multiple I/Os: 2 x Serial ports, 4 x USB 3.0 (USB3.2 Gen1x1 Type-A)
• 12 V DC power input (Din4 pin connector)
• Display outputs: DP1.2 (4096 x 2160 @ 60 Hz), optional HDMI (3840 x 2160 @ 30 Hz) and optional VGA
• Fanless design and metal housing for industrial use

Product Highlights

• Resistive Touch / Optional Protective Glass: configurable as resistive touch screen or protection glass without touch.
• Low Power Consumption: designed for energy efficiency and effective heat dissipation for long-term use in production environments.
• Mounting Options: default panel mount with optional VESA mounting; multiple mounting clips included.

Certifications

• CE
• FCC

Specifications

• Display — Size: 15.6 inches; Resolution: 1366 x 768; Panel Brightness: 400 nits; Contrast Ratio: 500:1; View Angles: 85, 85, 80, 80; Active Area: 344.232 x 195.536 mm; Touch/Glass: Resistive Touch Screen (optional) or Protection Glass without touch (optional).
• Processor — Intel® Pentium® N4200 1.1 GHz (burst up to 2.5 GHz).
• Memory — Dual-channel (non-ECC) SO-DIMM up to 16 GB.
• Storage — 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB; 2 x SATA III for 2.5" SSD/HDD (optional, support RAID); 1 x M.2 2242 B-key (SATA III) slot.
• Ethernet — 2 x Intel® Gigabit Ethernet controller (RJ45).
• Security — TPM 2.0.
• Operating System — Optional: Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 20.04 (optional).
• Wireless — WLAN: optional; Bluetooth: optional (via M.2 2230 E-Key for Wi‑Fi module).
• USB — 4 x USB 3.2 Gen1x1 (Type-A).
• Serial — 1 x RS232/422/485 (default RS232); 1 x RS232.
• Video — 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional). DP supports 4096 x 2160 @ 60 Hz; HDMI supports 3840 x 2160 @ 30 Hz.
• Audio — 1 x Mic-in; 1 x Line-out; 2 x Speaker.
• Expansion — 1 x M.2 2242 B-key (for SATA III SSD); 1 x M.2 2230 E-key (for Wi‑Fi module); 1 x PCIe 2.0 (x1) slot.
• Indicators & Controls — 1 x LED indicator for power; 1 x LED indicator for storage; 1 x Brightness adjustment knob; 1 x Power button; 1 x Reset button.
• Power — Power input: 1 x 12V DC (Din4 pin connector); Power rating: 12V DC; Adapter: 12V 50W. Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips.
• Mechanical — Dimensions: 400 x 280 x 75.5 mm; Cut out: 370 x 235 mm; Weight: 3.9 kg; Enclosure: Metal housing; Mounting: Panel mount (default), VESA mount (optional); Cooling: Fanless design.
• Environment — Operating humidity: 10% to 90% RH (non-condensing); Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C.
• Certification — CE, FCC.
