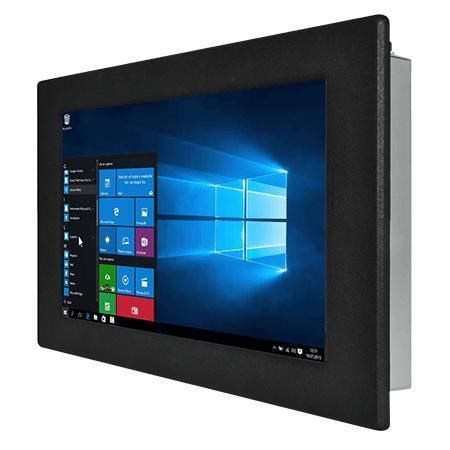

Resistive touch screen panel PC W10IE3S-PMH2

TFT LCD10.1"Intel® Celeron® N6211

Overview
Winmate W10IE3S-PMH2 is a 10.1-inch panel-mount Panel PC powered by Intel® Celeron® N6211 (Elkhart Lake). It is designed for machine control, factory automation and operator HMI, offering low power consumption, a fanless metal housing and multiple expansion options for industrial integration.

Key features

• 10.1-inch TFT LCD, 1280 x 800, 350 nits
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• 2 x Intel® Ethernet controllers (2 x 2.5G LAN RJ45)
• Storage: 128 GB SSD default; M.2 2242 B-Key (SATA III) and 1 x SATA III for 2.5-inch SSD/HDD
• IO: 2 x USB 3.2 Gen2x1, 4 x USB 2.0, serial ports, HDMI (optional), 2 x speakers

Display

• Size: 10.1 inches
• Resolution: 1280 x 800
• Brightness: 350 nits
• Contrast ratio: 800:1
• Viewing angles: 85/85/85/85
• Active area: 216.96 x 135.6 mm
• Touch/Glass: Resistive touch optional or protection glass optional

System specification

• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; options 8 GB, 16 GB; 1 x SO-DIMM
• Storage options: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB
• Security: TPM 2.0
• OS support: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)
• WLAN/Bluetooth: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 286 x 182 x 50.5 mm
• Cut out: 252.5 x 162 mm
• Weight: 1.7 kg
• Mounting: Panel mount default; VESA optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x 2.5G LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (SATA III); 1 x M.2 2230 E-Key (Wi-Fi)
• Indicators/controls: LED power, LED storage, brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x power, 1 x reset

Accessory

• 100~240V AC to DC adapter (12V 50W)
• Power cord
• VESA screws (if applicable)
• Mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: W10IE3S-PMH2
• Display: 10.1-inch 1280x800, 350 nits, 800:1
• CPU: Intel® Celeron® N6211
• Memory: 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• Storage: 128 GB SSD default; expansion via M.2 and SATA III
• LAN: 2 x Intel® Ethernet (2.5G)
• IO: USB, serial, HDMI optional, audio speakers
• Mount: Panel mount default, VESA optional
• Enclosure: Metal, fanless
• Operating temp/humidity: 0°C to 50°C / 10%–90% RH non-condensing
• Certifications: CE, FCC
