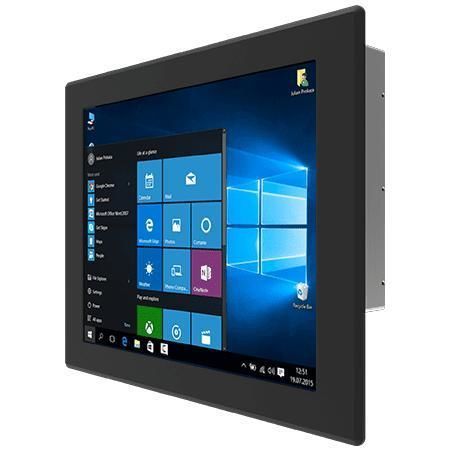

Resistive touch screen panel PC R19IT3S-PMA1

TFT LCD19"Intel® Core™ i5-1135G7

Overview
Winmate R19IT3S-PMA1 is a 19.0 inches panel-mount industrial Panel PC engineered for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor, fanless cooling and multiple storage and mounting options to support long-term industrial deployment.

Key Features

• 19.0 inches TFT XGA display, 1280 x 1024, 400 nits
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless design and ultra-low power consumption
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual Intel® Ethernet controllers (2 x 2.5 Gbps)
• M.2 Key M slot for M.2 2242 SATA III SSD; optional M.2 2280 NVMe

Certifications

• CE
• FCC

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024 (XGA)
• Brightness: 400 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Active Area: 376.32 x 301.06 mm
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)

System Specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN)
• Security: TPM 2.0
• Operating Systems: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (optional; Wake on Touch not supported on Ubuntu)
• WLAN / Bluetooth: optional (M.2 2230 E-Key slot)

Mechanical

• Dimensions: 474 x 384 x 77 mm
• Cut out: 431 x 341 mm
• Weight: 6.9 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Operating Humidity: 10% to 90% RH, non-condensing

IO Ports

• USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED power and storage indicators
• Brightness Control: Brightness adjustment knob
• Power Input: 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Technical specifications

• Model: R19IT3S-PMA1
• Brand: Winmate
• Display: 19.0" TFT XGA (1280 x 1024), 400 nits
• CPU: Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Memory: DDR4 SO-DIMM, up to 32 GB (1 x SO-DIMM)
• Storage: onboard SSD options; M.2 Key M and SATA III support
• LAN: Dual Intel Ethernet (2 x 2.5 Giga LAN)
• Security: TPM 2.0
• I/O: 2 x USB3.2 Gen2, serial RS232/422/485, HDMI (optional), audio speakers
• Mounting: Panel mount default; VESA optional
• Operating Temp: 0°C to 50°C
• Certifications: CE, FCC
