Resistive touch screen panel PC W24IT7T-PMA2
24"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

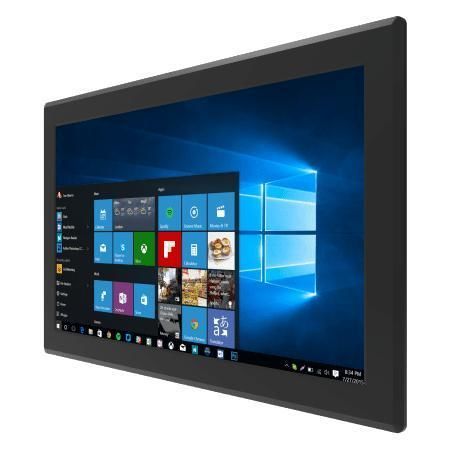

Resistive touch screen panel PC - W24IT7T-PMA2 - Winmate, Inc. - 24" / Intel® Core™ i5-1135G7 / Intel® Tiger Lake-U
Resistive touch screen panel PC - W24IT7T-PMA2 - Winmate, Inc. - 24" / Intel® Core™ i5-1135G7 / Intel® Tiger Lake-U
Resistive touch screen panel PC - W24IT7T-PMA2 - Winmate, Inc. - 24" / Intel® Core™ i5-1135G7 / Intel® Tiger Lake-U - image - 2
Resistive touch screen panel PC - W24IT7T-PMA2 - Winmate, Inc. - 24" / Intel® Core™ i5-1135G7 / Intel® Tiger Lake-U - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
resistive touch screen
Display size
24"
Processor
Intel® Core™ i5-1135G7, Intel® Tiger Lake-U
Resolution
1920 x 1080, full HD
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, open frame, in metal housing
Mounting
VESA mounting
Applications
industrial
Other characteristics
HMI, Ethernet, RJ45, WiFi
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
  • Winmate W24IT7T-PMA2 is a 24" panel-mount Panel PC powered by Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI applications.
  • Intended for industrial deployments requiring long lifecycle availability, stable hardware integration and reliable field operation.


Design Highlights
  • Resistive touch or optional protection glass to suit different operator interfaces and cleaning requirements.
  • Fanless metal housing and low power design for continuous operation in production environments.
  • Mounting flexibility: open frame by default; optional panel mount, rear mount and VESA mounting solutions.


Key Features
  • 24" FHD display (1920 x 1080) with 250 nits brightness and 3000:1 contrast.
  • Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro) options.
  • Multi-display support via DP / HDMI / LVDS / eDP interfaces and diverse I/O set.
  • 12V DC single-voltage power input and standard industrial power connector.


Display
  • Size: 24.0 inches; Resolution: 1920 x 1080; Panel brightness: 250 nits; Contrast ratio: 3000:1; View angles: 89/89/89/89; Active area: 527.04 x 296.46 mm.
  • Surface options: Resistive touch screen (optional) or protection glass without touch (optional).


System Specification
  • Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz); optional i5-1145G7E (vPro).
  • Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM).
  • Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); M.2 2280 M-Key for NVMe.
  • Ethernet: 1 x Gigabit LAN + 1 x 2.5 Gigabit LAN; TPM 2.0 supported.
  • OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (note: Wake on Touch not supported on some OS configurations).


Mechanical
  • Dimensions: 606 x 376 x 76 mm; Cut out: 561 x 328 mm; Weight: 8.7 kg.
  • Enclosure: Metal housing; Cooling: fanless design.
  • Mounting: Open frame (default); optional panel mount and VESA mount.


Environment
  • Operating humidity: 10% to 90% RH, non-condensing.
  • Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C.


Certification
  • CE
  • FCC


I/O Ports
  • USB: 4 x USB 3.2 Gen2x1 (Type-A).
  • Serial: 1 x RS232/422/485 (default RS232); 1 x RS232.
  • LAN: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45).
  • Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional).
  • Audio: Mic-in; Line-out.
  • Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal).
  • Indicators & controls: Power and storage LEDs; brightness adjustment knob; power connector: 1 x 12V DC (Din4).


Control
  • Physical buttons: 1 x Power button; 1 x Reset button.


Accessory
  • Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws.


Power
  • Power input: 12V DC (Din4); Adapter: 12V 120W.


Technical specifications
  • Model: W24IT7T-PMA2; Brand: Winmate.
  • Display: 24" 1920x1080, 250 nits, 3000:1.
  • CPU: Intel® Core™ i5-1135G7 (Tiger Lake); Memory up to 64 GB; Storage options up to 4 TB + optional 2.5" SATA.
  • Network: 1 x Gigabit LAN + 1 x 2.5 Gigabit LAN; Security: TPM 2.0.
  • Dimensions/Weight: 606 x 376 x 76 mm / 8.7 kg; Certifications: CE, FCC.
