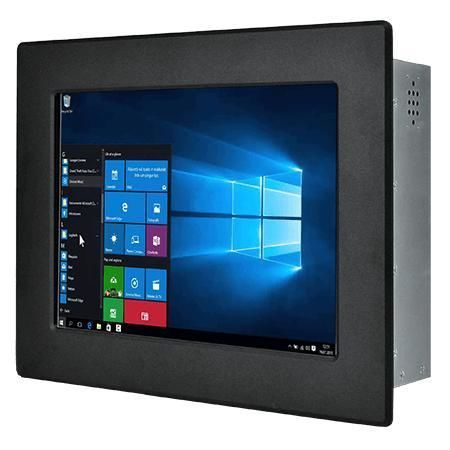

Resistive touch screen panel PC R10IE3S-PMT2

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-PMT2 is a 10.4-inch panel-mount Panel PC powered by an Intel® Celeron® Elkhart Lake N6211 processor. It is built for machine control, factory automation and operator HMI applications where low power, long lifecycle and multiple I/O options are required.

Key Features

• 10.4 inch TFT XGA (1024 x 768), 500 nits
• Intel® Celeron® N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• 2 x 2.5 G LAN (Intel® Ethernet controllers)
• Multiple storage and expansion: 1 x M.2 2242 B-Key (SATA), 1 x M.2 2230 E-Key, optional SATA III 2.5"
• Rich I/O: USB3.2 Gen2x1, USB2.0, RS232/422/485, HDMI (optional)

Product Highlights

• Surface options: resistive touch or protective glass (no touch) to suit operator environments
• Fanless metal housing and efficient thermal design for continuous operation
• Default panel mount with optional rear and VESA mounting for flexible integration

Display

• Size: 10.4 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768 (XGA)
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 88/88/88/88
• Active Area: 210.4 x 157.8 mm

System Specification

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; optional 8 GB / 16 GB — 1 x SO-DIMM, max 16 GB DDR4
• Storage: 128 GB SSD default; options up to 2 TB; optional 1 x SATA III (2.5")
• Ethernet: 2 x Intel® 2.5 G LAN
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Ubuntu 22.04
• WLAN/Bluetooth: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 284 x 234 x 55 mm
• Cut out: 262 x 199 mm
• Weight: 2.4 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Additional USB: 4 x USB 2.0
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2242 B-Key (SATA III SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: 1 x LED power; 1 x LED storage
• Brightness knob: 1 x Brightness Adjustment Knob
• Power input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x Power button; 1 x Reset button

Accessories

• 100 ~ 240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: R10IE3S-PMT2
• Manufacturer: Winmate
• Display: 10.4" TFT XGA 1024x768, 500 nits, 1000:1
• CPU: Intel® Celeron® N6211
• Memory: up to 16 GB DDR4 (1 x SO-DIMM)
• Storage: 128 GB SSD default, options up to 2 TB; SATA III / M.2 support
• LAN: 2 x 2.5 G LAN
• USB: 2 x USB3.2 Gen2x1 + 4 x USB2.0
• Serial: RS232/422/485 options
• Expansion: M.2 2242 B-Key, M.2 2230 E-Key
• Security: TPM 2.0
• Mounting & enclosure: panel mount default; metal housing; fanless
• Dimensions: 284 x 234 x 55 mm; Weight: 2.4 kg
• Operating temp/humidity: 0°C to 50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
