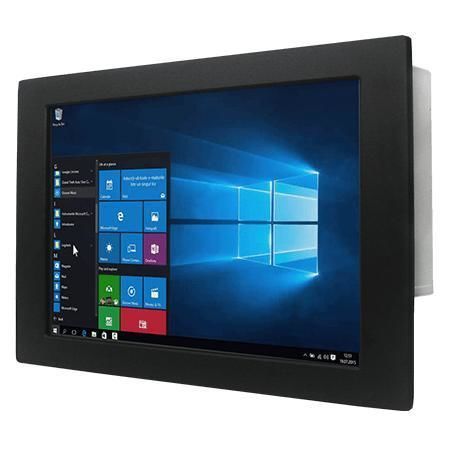

Resistive touch screen panel PC W18IP7T-PMA2

18.5"Intel® Pentium® N42001366 x 768

Overview
Winmate W18IP7T-PMA2 is an 18.5-inch panel-mount Panel PC powered by an Intel® Pentium® N4200 (Apollo Lake) processor. It is designed for machine control, factory automation and operator HMI, offering fanless metal housing, low power consumption and multiple expansion and I/O options for industrial integration.

Key features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay, M.2 sockets and SSD support; 2 x SATA III optional
• Multiple I/O: 4 x USB 3.2 Gen1 (Type‑A), 2 x Gigabit LAN, 2 x serial (configurable RS232/422/485)
• 12V DC power input (Din4 pin)
• Display outputs: DisplayPort 1.2 (up to 4096×2160 @60Hz); HDMI 1.4 optional

Product highlights

• 18.5" display, 1366×768 resolution, 450 nits brightness, 1000:1 contrast and wide viewing angles
• Touch options: resistive touch screen (optional) or protection glass without touch (optional)
• Fanless metal enclosure for reliable long-term operation in industrial environments
• Panel mount as standard with optional rear VESA mounting; mounting clips and VESA screws available

Usage scenarios

• Machine control and factory automation
• Operator HMI in production lines and equipment cabinets
• OEM integration and embedded installations requiring long lifecycle and field reliability

Technical specifications

• Display — Size: 18.5"; Resolution: 1366×768; Brightness: 450 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 409.8×230.4 mm; Touch/Glass: resistive touch (optional) or protection glass (optional)
• System — CPU: Intel® Pentium® N4200 (1.1 GHz base, up to 2.5 GHz); Memory: dual‑channel SO‑DIMM DDR3L up to 16 GB; Storage: 128 GB SSD default, optional 256/512 GB/1 TB; Expansion: 1 x M.2 2242 B‑Key (SATA SSD), 1 x M.2 2230 E‑Key (Wi‑Fi), 1 x PCIe 2.0 x1
• I/O — USB: 4 x USB3.2 Gen1 (Type‑A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x Gigabit RJ45; Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional), 1 x VGA (optional); Audio: Mic in, Line out, 2 x Speaker; Indicators and controls: power LED, storage LED, brightness knob, power and reset buttons
• Mechanical — Dimensions: 520×340×70 mm; Cut‑out: 462×285 mm; Weight: 5.3 kg; Mounting: panel mount (default), VESA optional; Enclosure: metal; Cooling: fanless
• Environment — Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C; Operating humidity: 10% to 90% RH non‑condensing
• Certifications & Power — CE, FCC; Power input: 12V DC (Din4 pin); Adapter: 12V 84W (accessory)
