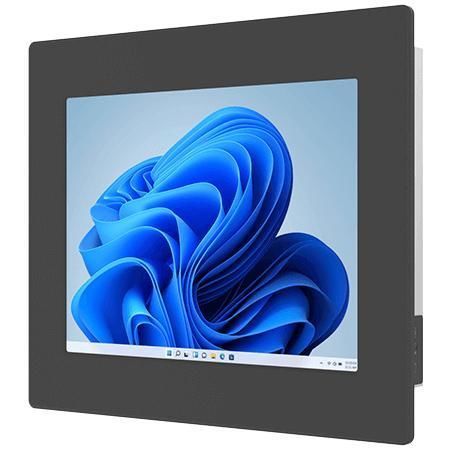

Resistive touch screen panel PC R12IAN3S-PMM2

TFT LCD12.1"Intel® Processor N100

Overview
Winmate R12IAN3S-PMM2 is a 12.1-inch XGA panel-mount Panel PC designed for machine control, factory automation and operator HMI. It combines Intel® Alder Lake‑N processing (N100 default, N150 optional), fanless metal enclosure and extensive I/O to meet embedded industrial requirements.

Key features

• 12.1-inch XGA TFT LCD (1024 x 768), 500 nits
• Intel® Alder Lake‑N (N100 default, N150 optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet
• Rich I/O: HDMI (optional), USB 3.2 Gen2 Type‑C (DP‑Alt), USB 3.2 Gen1 Type‑A, USB 2.0, multiple COM ports
• Panel mount (default) and optional VESA mount; metal housing; fanless design

Typical applications

• Machine control and factory automation
• Operator HMI and monitoring stations
• Embedded OEM systems requiring long lifecycle availability

Certifications

• CE
• FCC

Technical specifications

• Display: 12.1 inches; Resolution: 1024 x 768 (XGA); Brightness: 500 nits; Contrast ratio: 1000:1; View angles: 89/89/89/89; Active area: 245.76 x 184.32 mm; Touch/Glass: Resistive touch optional or protection glass without touch optional
• Processor: Intel® Processor N100 (6M Cache, up to 3.40 GHz) default; Intel® Processor N150 (6M Cache, up to 3.60 GHz) optional
• Memory: 4 GB default; optional 8 GB, 16 GB; 1 x SO‑DIMM DDR5‑4800, max 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5‑inch SSD/HDD up to 2 TB (only when NVMe SSD not present)
• Ethernet controller: 2 x Intel® 2.5 Gigabit Ethernet
• Security: TPM 2.0
• Operating system options: Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04 (Wake on Touch not supported)
• WLAN/Bluetooth: Optional via M.2 2230 E‑Key slot
• Dimensions: 324 x 274 x 57 mm; Cut-out: 303 x 234.5 mm; Weight: 2.6 kg
• Mounting: Panel mount default; VESA mount optional; Enclosure: Metal housing; Cooling: Fanless design
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• I/O ports: USB 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (DP Alt Mode); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga RJ45; Video: 1 x HDMI 2.0b (optional); Audio: 2 x speaker; Expansion: 1 x M.2 2230 E‑Key; Indicators: LED for power and storage; Brightness knob
• Power: Input 1 x 12V DC (2.5φ DC jack); Adapter: 12V 50W
• Controls: 1 x Power button; 1 x Reset button
• Accessories: 100~240V AC to DC adapter; power cord; VESA screws; mounting clips
