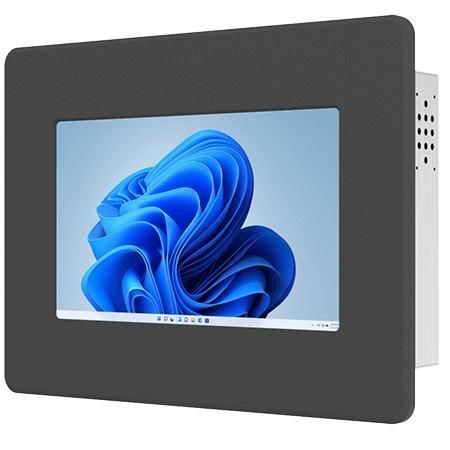

Resistive touch screen panel PC W07IAN3S-PMT1

TFT LCD7"Intel® Processor N100

Overview
Winmate W07IAN3S-PMT1 is a 7-inch panel mount industrial Panel PC powered by Intel® Alder Lake‑N series processors (N100 default, N150 optional). It is designed for machine control, factory automation and operator HMI, providing reliable performance, long lifecycle availability and rugged integration for industrial environments.

Key features

• 7" SVGA TFT LCD (1024 x 600)
• Intel® Alder Lake‑N N100 (default) / Intel® Alder Lake‑N N150 (optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16GB
• Dual 2.5 Gigabit Ethernet
• Multiple modern I/O: HDMI, USB 3.2 Type‑C (DP‑Alt), USB 3.2 Gen2 Type‑A, USB 2.0
• Supports panel mount (default) and VESA mount (optional)
• Metal housing, fanless design

Highlights & functional summary
This Panel PC provides clear industrial visuals via a 7" SVGA TFT display and versatile I/O for seamless integration, including multiple USB ports, optional HDMI, COM ports and dual Intel® 2.5GbE controllers. TPM 2.0 security support, optional wireless via M.2 E‑Key and a range of OS, storage and memory configurations make it suitable for embedded and automation use cases.

Certifications
CE, FCC

Additional product details

• Display: 7.0 inches, 1024 x 600, brightness 320 nits, contrast ratio 1000:1, view angles 75/75/75/70, active area 153.6 x 90 mm
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)
• Processor: Intel® N100 6M Cache up to 3.40 GHz (default); Intel® N150 6M Cache up to 3.60 GHz (optional)
• Memory: 4GB default; optional 8GB or 16GB (SO‑DIMM DDR5‑4800)
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (only when NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers
• Security: TPM 2.0
• Operating system options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 24.04 (optional; Wake on Touch not supported)
• WLAN / BT: optional via M.2 2230 E‑Key slot

Mechanical

• Dimensions: 218 x 164.6 x 55.3 mm
• Cut out: 192 x 133 mm
• Weight: 1.5 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

IO & interfaces

• USB: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (supports DP Alt mode); additional USB 2.0 ports per configuration
• Serial: 1 x RS232/422/485 (configurable, default RS232) and 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E‑Key slot (for Wi‑Fi module)
• Indicators: 1 x LED for power; 1 x LED for storage
• Power input: 1 x 12V DC, 2.5φ DC jack

Control & accessories

• Buttons: 1 x Power Button; 1 x Reset Button
• Included accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips

Specifications

• Model: W07IAN3S-PMT1
• Brand: Winmate
• Display size: 7.0 inches
• Resolution: 1024 x 600 (SVGA)
• Panel brightness: 320 nits
• Contrast ratio: 1000:1
• View angles: 75/75/75/70
• Active area: 153.6 x 90 mm
• Touch: Resistive touch (optional) / Protection glass without touch (optional)
• Processor options: Intel® N100 (default) / Intel® N150 (optional)
• Memory: SO‑DIMM DDR5‑4800, 4GB default, up to 16GB
• Storage: 128GB SSD default; up to 4TB optional; SATA III support for 2.5" drive when no NVMe
• Ethernet: 2 x Intel® 2.5 GbE
• TPM: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Ubuntu 24.04 (optional)
• Expansion: M.2 2230 E‑Key slot (Wi‑Fi)
• Dimensions: 218 x 164.6 x 55.3 mm
• Cut-out size: 192 x 133 mm
• Weight: 1.5 kg
• Mounting: Panel mount default, VESA optional
• Enclosure: Metal housing
• Cooling: Fanless
• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB ports: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (DP Alt); additional USB 2.0 as configured
• Serial ports: RS232/422/485 and RS232 (config dependent)
• Video output: HDMI 2.0b (optional)
• Audio: 2 x speaker
• Power input: 12V DC (2.5φ DC jack)
• Power adapter: 12V 50W
• Certifications: CE, FCC
