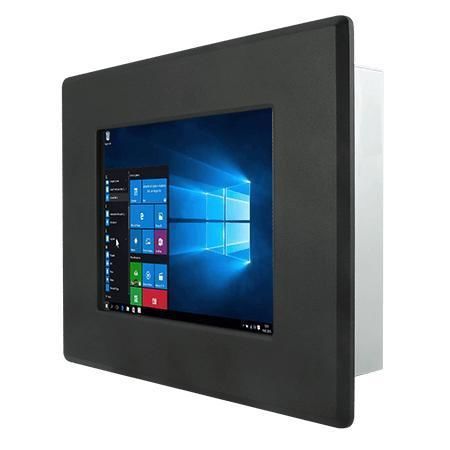

Resistive touch screen panel PC R06IE3S-PMA1

TFT LCD6.5"Intel® Celeron® N6211

Product Summary
Winmate R06IE3S-PMA1 is a 6.5-inch panel-mount Panel PC powered by an Intel® Celeron® Elkhart Lake N6211 processor. It is intended for machine control, factory automation and operator HMI applications requiring low power consumption, flexible mounting and industrial I/O connectivity.

Key Features

• 6.5" TFT SVGA LCD (640 x 480)
• Intel® Celeron® Elkhart Lake N6211 processor
• 1 x SO-DIMM, up to 16GB DDR4
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0

Overview
The R06IE3S-PMA1 provides a compact, fanless computing platform for embedded industrial applications. Its I/O options and expansion slots support integration with automation peripherals and field devices.

Resistive Touch / Optional Protective Glass
Configurable surface options: resistive touch for operator input or optional protective cover glass when touch functionality is not required.

Low Power Consumption
Designed for low power usage and efficient passive heat dissipation to support long-term operation in production environments.

Mounting Options
Standard panel mount installation with optional rear and VESA mounting for flexible system integration.

Certifications
CE and FCC certified.

Technical specifications

• Display: 6.5 inches; Resolution 640 x 480 (SVGA); Brightness 700 nits; Contrast 600:1; Viewing angles 80/80/70/70; Active area 132.48 x 99.36 mm
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB default; optional 8GB, 16GB (1 x SO-DIMM, max 16GB DDR4)
• Storage: 128GB SSD default; optional 256GB, 512GB, 1TB, 2TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• Wireless: Optional WLAN and Bluetooth support
• Mechanical: Dimensions 218 x 164 x 55.6 mm; Cut-out 192 x 144 mm; Weight 1.4 kg; Metal housing; Fanless design
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• I/O: 2 x USB 3.2 Gen2x1 (Type-A) plus additional USB 2.0 ports; 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x 2.5 Giga LAN RJ45; 1 x HDMI 2.0 (optional); 2 x speaker; 1 x M.2 2242 B-Key (SATA III); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & Controls: LED power; LED storage; Brightness adjustment knob; Power and Reset buttons
• Power: 1 x 12V DC input (2.5φ DC jack); Adapter 12V 50W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Certifications: CE, FCC
