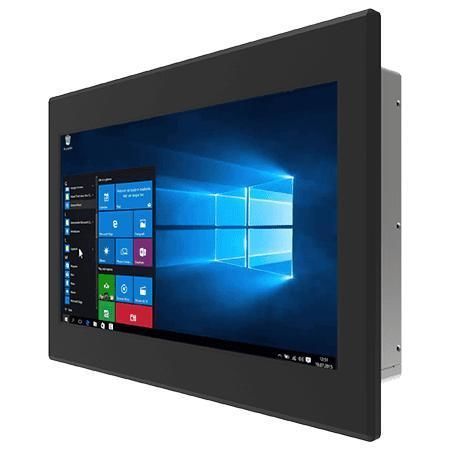

Resistive touch screen panel PC W15IAD3S-PMA2

15.6"Intel® Core i5-1235U1366 x 768

Overview
Winmate W15IAD3S-PMA2 is a 15.6-inch panel-mount Panel PC powered by a 12th Gen Intel® Core™ i5-1235U processor. Designed for machine control, factory automation and operator HMI applications, it provides configurable memory and storage, multiple I/O and dual 2.5 Gigabit Ethernet connectivity with a 12V DC power input.

Key Features

• 15.6-inch 1366 x 768 panel-mount display
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM, DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/Os: 2 x USB 3.2 Gen2x1 (Type-A), serial ports, expansion slots (M.2)
• 12 V DC power input; fanless design

Product Highlights / Features

• Intel Alder Lake architecture for responsive multitasking and bursts up to 4.40 GHz.
• Display options: resistive touch screen (optional) or protection glass without touch (optional) to match operator requirements.
• Fanless thermal design to reduce maintenance and support continuous operation in production environments.
• Flexible mounting: standard panel-mount with optional VESA mounting for alternate installations.

Certifications

• CE
• FCC

Technical specifications

• Model: W15IAD3S-PMA2
• Brand: Winmate
• Display: 15.6 inches, 1366 x 768, 400 nits, 500:1 contrast
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• Processor: Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• Memory: 8GB default; options 16GB/32GB; 1 x SODIMM DDR5 4800MHz, up to 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x M.2 2280 (NVMe); 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers (2 x RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (optional)
• WLAN/Bluetooth: optional via M.2 2230 E-Key
• IO: 2 x USB 3.2 Gen2x1 (Type-A); 1 x RS232/422/485 (default RS232) + 1 x RS232; optional HDMI 2.0; 2 x speakers
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Indicators: power LED, storage LED; brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter example: 12V 120W
• Mechanical: dimensions 400 x 280 x 74.5 mm; cut-out 368.3 x 232 mm; weight 3.9 kg; metal housing
• Mounting: panel-mount (default); VESA mount optional
• Cooling: fanless
• Environment: operating temperature 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
• Certifications: CE, FCC
