Resistive touch screen panel PC R12IE3S-PMM2
TFT LCD12.1"Intel® Celeron® N6211

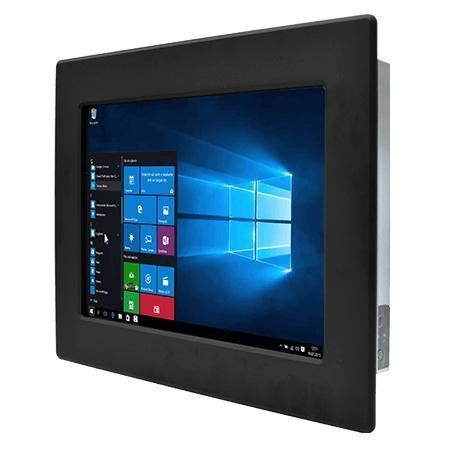

Resistive touch screen panel PC - R12IE3S-PMM2 - Winmate, Inc. - TFT LCD / 12.1" / Intel® Celeron® N6211
Resistive touch screen panel PC - R12IE3S-PMM2 - Winmate, Inc. - TFT LCD / 12.1" / Intel® Celeron® N6211
Resistive touch screen panel PC - R12IE3S-PMM2 - Winmate, Inc. - TFT LCD / 12.1" / Intel® Celeron® N6211 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen
Display size
12.1"
Processor
Intel® Celeron® N6211
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, in metal housing, metal chassis
Mounting
VESA mounting
Applications
industrial
Other characteristics
WiFi, Bluetooth, with external power adapter
Memory size

4 GB, 8 GB, 16 GB

Description

Overview
  • Winmate R12IE3S-PMM2 is a 12.1-inch panel-mount Panel PC powered by Intel® Celeron® N6211, engineered for machine control, factory automation and operator HMI in industrial environments.
  • Fanless design, metal enclosure and multiple mounting options for panel and VESA installations.


Key Features
  • 12.1" TFT LCD, 1024 x 768, 500 nits, 1000:1
  • Intel® Celeron® Elkhart Lake N6211 (up to 3.0 GHz)
  • 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
  • 2 x 2.5 Giga LAN (Intel®), 2 x USB 3.2 Gen2x1, 4 x USB 2.0, 4 x COM (configurable)
  • Expansion: 2 x SATA III, M.2 2242 B-Key (SATA), M.2 2230 E-Key (Wi‑Fi)


Display
  • Size: 12.1 inches
  • Resolution: 1024 x 768
  • Brightness: 500 nits
  • Contrast Ratio: 1000:1
  • Viewing Angles: 89 / 89 / 89 / 89
  • Active Area: 245.76 x 184.32 mm
  • Surface options: Resistive touch (optional) or protection glass (optional)


System Specification
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 4 GB default; optional 8 GB / 16 GB; 1 x SO-DIMM, max 16 GB DDR4
  • Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; optional 1 x SATA III for 2.5" SSD/HDD
  • Security: TPM 2.0
  • OS: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04 (optional)
  • WLAN / Bluetooth: optional via M.2 2230 E-Key


Mechanical
  • Dimensions: 324 x 274 x 57 mm
  • Cut out: 303 x 234.5 mm
  • Weight: 2.6 kg
  • Mounting: panel mount (default); VESA mount optional
  • Enclosure: metal housing
  • Cooling: fanless design


Environment
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • Operating humidity: 10% to 90% RH, non-condensing


Certifications
  • CE
  • FCC


IO Ports
  • USB: 2 x USB 3.2 Gen2x1 (Type-A) + 4 x USB 2.0
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • LAN: 2 x 2.5 Giga LAN (RJ45)
  • Video: 1 x HDMI 2.0 (optional)
  • Audio: 2 x speaker
  • Expansion: 1 x M.2 2242 B-Key (SATA), 1 x M.2 2230 E-Key (Wi‑Fi)
  • Indicators: LED power, LED storage; brightness adjustment knob
  • Power input: 1 x 12V DC, 2.5φ DC jack


Control
  • Buttons: 1 x Power; 1 x Reset


Accessories
  • 100~240V AC to DC adapter (12V 50W)
  • Power cord
  • VESA screws (if VESA option)
  • Mounting clips


Power
  • Power rating: 12V DC
  • Adapter: 12V 50W


Additional Notes
  • Configurations available with protective glass (no touch) or resistive touch depending on operator needs.
  • Designed for low power consumption and efficient heat dissipation for reliable long-term operation in production facilities.
  • Multiple rear and VESA mounting solutions for integration flexibility.


Technical specifications
  • Model: R12IE3S-PMM2
  • Display: 12.1", 1024 x 768, 500 nits, 1000:1
  • CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
  • Storage: 128 GB SSD default; up to 2 TB optional; 1 x SATA III optional
  • LAN: 2 x 2.5 Giga LAN
  • USB: 2 x USB 3.2 Gen2x1 + 4 x USB 2.0
  • Serial: RS232/422/485 options
  • Expansion: M.2 2242 B-Key, M.2 2230 E-Key
  • Dimensions / Weight: 324 x 274 x 57 mm / 2.6 kg
  • Operating: 0°C to 50°C; 10%–90% RH non-condensing
  • Mounting: panel mount default; VESA optional
  • Certifications: CE, FCC
