TFT LCD panel PC R06IAN3S-PMA1

6.5"Intel® Processor N100Intel® Alder Lake-N

Overview

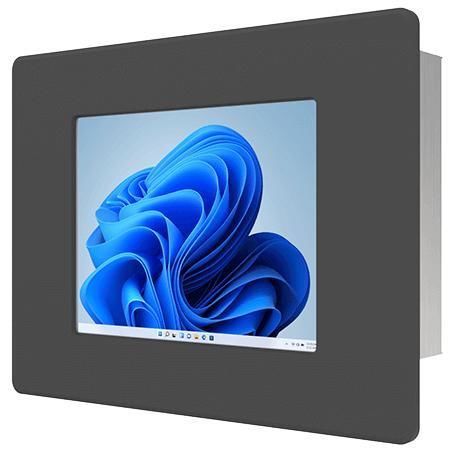

Winmate R06IAN3S-PMA1 is a 6.5-inch panel mount Panel PC powered by the Intel® Alder Lake-N N150 processor, intended for machine control, factory automation and operator HMI. It supports real-time data handling, deterministic control tasks and compact visual interfaces for embedded industrial systems.

Product details
The R06IAN3S-PMA1 integrates Intel® Alder Lake-N N150 with integrated UHD Graphics to deliver processing and graphics capabilities suited for automation and monitoring applications. It accepts a single SO-DIMM DDR5-4800 module (up to 16 GB) and supports panel and VESA mounting for flexible installation in control cabinets or operator stations.

Display
Equipped with a 6.5" SVGA TFT LCD, the unit provides clear industrial-grade visuals optimized for readability in confined or machine-mounted environments.

I/O & connectivity
Designed for system integration, the platform offers extensive I/O: HDMI output, USB 3.2 Type-C with DisplayPort Alt Mode, multiple USB 3.2 Gen 2 and USB 2.0 ports, four COM ports and dual 2.5 Gigabit Ethernet interfaces to support high-speed, low-latency networked control.

Key features

• 6.5" SVGA TFT LCD
• Intel® Alder Lake-N N150 processor
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x 2.5 Gigabit Ethernet
• 1 x HDMI; 1 x USB 3.2 Type-C (DP-Alt); 2 x USB 3.2 Gen 2 Type-A; 4 x USB 2.0; 4 x COM
• Supports panel mount and VESA mount

Certifications

• FCC
• CE

Technical specifications

• Model: R06IAN3S-PMA1
• Brand: Winmate
• Display: 6.5" SVGA TFT LCD
• Processor: Intel® Alder Lake-N N150
• Memory: 1 x SO-DIMM DDR5-4800, up to 16 GB
• Ethernet: 2 x 2.5 Gigabit Ethernet
• Video & I/O: 1 x HDMI; 1 x USB 3.2 Type-C with DP-Alt; 2 x USB 3.2 Gen 2 Type-A; 4 x USB 2.0
• Serial: 4 x COM ports
• Mounting: Panel mount and VESA mount supported
• Target applications: Machine control, factory automation, operator HMI, embedded industrial environments
• Certifications: FCC, CE
