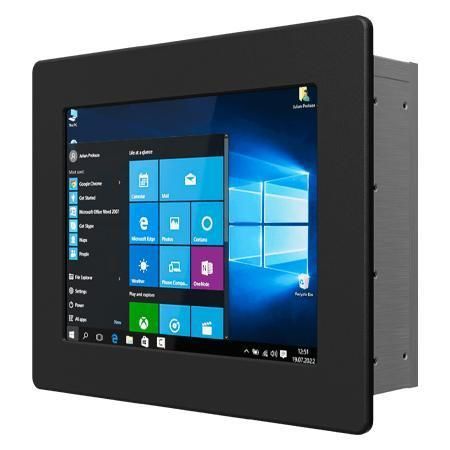

Resistive touch screen panel PC R10IAD3S-PMT2

10.4"Intel® Core i5-1235U1024 x 768

Overview
Winmate R10IAD3S-PMT2 is a 10.4" panel-mount Panel PC driven by a 12th Gen Intel® Core™ i5-1235U processor, intended for machine control, factory automation and operator HMI tasks that require stable field operation and long lifecycle availability.

Key features

• 10.4" 1024 × 768 display, 500 nits
• Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• 1 x SODIMM DDR5 4800 MHz, up to 32 GB
• Integrated dual 2.5 Gigabit Ethernet (2 x Intel® controllers)
• Multiple I/Os: 2 x USB 3.2 Gen2x1, serial ports, optional HDMI
• 12 V DC input, metal enclosure, fanless design

Highlights

• Touch and panel options: resistive touch (optional) or protection glass (optional)
• Low power consumption and fanless operation for production environments
• Mounting flexibility: panel-mount default; optional VESA
• Security: TPM 2.0 supported
• Storage & expansion: M.2 NVMe slot, M.2 E-Key for Wi‑Fi, SATA for 2.5" drive

Certifications

• CE
• FCC

Product presentation
Industrial-grade panel PC with configurable display and storage options, designed for reliable HMI and machine control integration in industrial installations.

Technical specifications

• Display: 10.4 inches, 1024 × 768, 500 nits, contrast 1000:1, viewing angles 88/88/88/88; active area 210.4 × 157.8 mm
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8 GB default; options 16 GB / 32 GB; 1 x SODIMM DDR5 4800 MHz (max 32 GB)
• Storage: 128 GB SSD default; options up to 4 TB; 1 x M.2 2280 M-Key (NVMe); 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x 2.5 Giga LAN RJ45 (Intel® controllers)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Indicators & controls: LED power, LED storage, brightness knob
• Power input: 1 x 12 V DC, 2.5φ DC jack; adapter 12 V 120 W
• Mechanical: Dimensions 284 × 234 × 56 mm; cut-out 262 × 203 mm; weight 2.4 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating humidity 10%–90% RH non‑condensing; operating temperature 0°C to 50°C; storage -10°C to 60°C
• Security & OS: TPM 2.0; optional Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (Wake on Touch not supported)
• Accessories: 100~240 V AC to 12 V DC adapter, power cord, VESA screws, mounting clips
