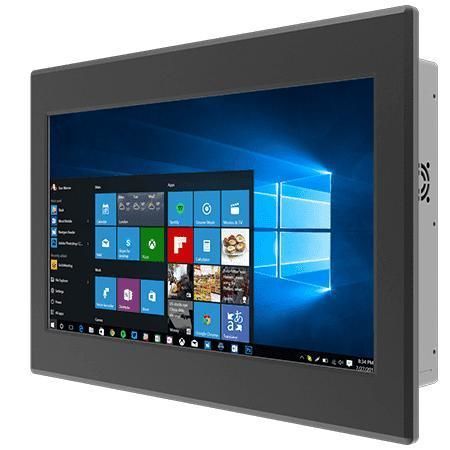

Resistive touch screen panel PC W15IT7T-PMA2

LCD15.6"Intel® Core™ i5-1135G7

Overview
The Winmate W15IT7T-PMA2 is a 15.6-inch panel-mount Panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI. It targets industrial OEMs and system integrators requiring long-lifecycle hardware with multiple I/O, multi-display support and flexible mounting options.

Key features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (up to 4.2 GHz) with optional i5-1145G7E (vPro)
• 15.6" display, 1366 x 768 resolution, 400 nits
• Multi-display interfaces: DP / HDMI / LVDS / eDP
• Rich I/O: serial ports, 4 x USB 3.2 Gen2x1 Type-A, dual Intel® Ethernet (1 x 1G, 1 x 2.5G)
• 12V DC single-voltage input (Din4 pin); fanless thermal design

Product details

• Display: 15.6", 1366 x 768, contrast 500:1, active area 344.232 x 195.536 mm, viewing angles 85/85/80/80
• Touch / Glass: resistive touch optional or protection glass without touch
• Memory & storage: 2 x non-ECC SO-DIMM (up to 64 GB); default 128 GB SSD; optional up to 4 TB, M.2 2280 (NVMe) and 2.5" SATA support
• Connectivity: 4 x USB 3.2 Gen2 Type-A, 1 x RS232/422/485 (default RS232), 1 x RS232, DP1.4 default, HDMI 2.0 optional, mic-in and line-out
• Expansion & wireless: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi module), PCIe 4.0 x16 slot (x4 signal)
• Security & OS: TPM 2.0; optional Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (Linux: no Wake on Touch)
• Mechanical & mounting: dimensions 400 x 280 x 75.5 mm; cut-out 368.3 x 232 mm; weight 3.9 kg; metal housing; panel mount default, VESA optional
• Power & indicators: 12V DC input (Din4); adapter 12V 120W recommended; LED indicators for power and storage; brightness knob, power and reset buttons
• Environment & certification: operating 0°C to 50°C; storage -10°C to 60°C; 10%–90% RH non-condensing; CE, FCC

Applications

• Machine control and CNC systems
• Factory automation and operator HMI stations
• Embedded industrial computing where multiple I/O, reliable networking and long-term availability are required

Technical specifications

• Model: W15IT7T-PMA2
• Brand: Winmate
• Display: 15.6" / 1366 x 768 / 400 nits / 500:1
• Processor: Intel® Core™ i5-1135G7 (option i5-1145G7E with vPro)
• Memory: 2 x SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional up to 4 TB; M.2 NVMe + 2.5" SATA
• Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
• Power: 12V DC (Din4); adapter 12V 120W
• Dimensions / Cut-out / Weight: 400 x 280 x 75.5 mm / 368.3 x 232 mm / 3.9 kg
• Mounting: Panel mount (default); VESA optional
• Security: TPM 2.0
• Cooling: Fanless
• Operating temp / Storage temp / Humidity: 0°C to 50°C / -10°C to 60°C / 10% to 90% RH non-condensing
• Certifications: CE, FCC
