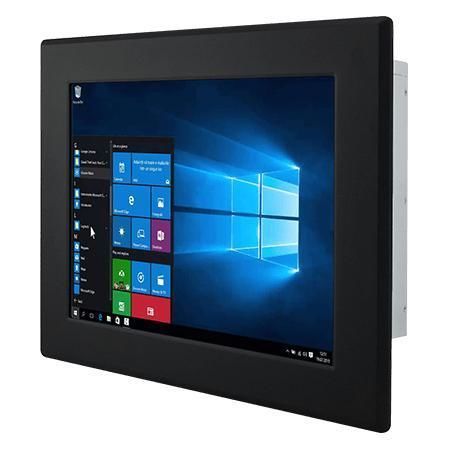

Resistive touch screen panel PC R17IP7T-PMM1

LCD17"Intel® Pentium® N4200

Product Overview
Winmate R17IP7T-PMM1 is a 17.0-inch panel-mount industrial Panel PC for machine control, factory automation and operator HMI. It integrates an Intel® Pentium® N4200 (Apollo Lake), fanless metal housing, TPM 2.0 and flexible mounting for industrial installations.

Key Features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: M.2 2242 B-key and 2.5" SATA support (128 GB SSD default; optional 256/512 GB)
• I/O: 4 x USB3.2 Gen1 Type-A, 2 x Gigabit LAN, 2 x configurable serial ports
• Video: DisplayPort 1.2 (4096 x 2160 @ 60 Hz), HDMI 1.4 (3840 x 2160 @ 30 Hz, optional)
• Power: 12 V DC (Din4 connector); fanless low-power design

Operator Convenience & Options

• Resistive touch option or protection glass without touch function
• Brightness adjustment knob and panel cut-out for flush mounting
• Mounting: panel mount (default), optional rear or VESA mounting; optional WLAN/Bluetooth (M.2 2230 E-key)

Design Highlights

• Metal housing with fanless cooling for continuous industrial use
• TPM 2.0 security support and optional Windows 10 IoT Enterprise or Linux
• Compact footprint: 440 x 360 x 81 mm; cut-out 394 x 314 mm; weight approx. 5.9 kg

Certifications

• CE
• FCC

Technical specifications

• Display: 17.0 inch, 1280 x 1024, 350 nits, 1000:1, Active Area 337.920 x 270.336 mm
• Memory: 2 x SO-DIMM DDR3L, dual-channel, up to 16 GB
• Storage: 128 GB SSD default; M.2 and optional 2 x SATA III for 2.5" SSD/HDD (RAID support optional)
• Expansion: 1 x M.2 2242 B-key (SATA), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• I/O extras: Mic In, Line Out, 2 x Speakers, Brightness knob, Power and Reset buttons
• Environmental: Operating 0°C to 50°C; Humidity 10%–90% RH non-condensing; Storage -10°C to 60°C
• Power & Accessories: 12 V DC Din4 input; 12V 84W adapter, power cord, mounting clips, VESA screws, manual
