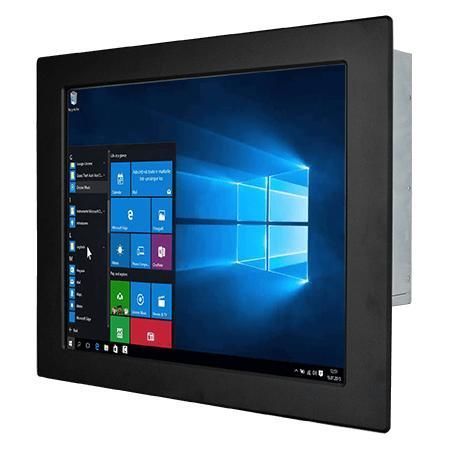

Resistive touch screen panel PC R19IP7T-PMA1

19"Intel® Pentium® N42001280 x 1024

Overview
Winmate R19IP7T-PMA1 is a 19-inch panel-mount Panel PC based on the Intel® Pentium® N4200 (Apollo Lake) platform. It is designed for machine control, factory automation and operator HMI in industrial and OEM applications. The unit provides flexible storage and I/O configurations, fanless thermal design and standard 12 V DC power input for embedded and cabinet installations.

Key features

• Intel® Pentium® N4200 processor (1.10 GHz base, burst up to 2.5 GHz)
• 19-inch display, 1280×1024 resolution, 400 nits brightness
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 2 x SATA III for 2.5" HDD/SSD; M.2 2242 B-key slot
• I/O: 4 x USB 3.2 Gen1 (Type-A), 2 x serial ports (RS232/422/485 configurable), 2 x Gigabit LAN (Intel controllers)
• Optional resistive touch or protective glass; DP and optional HDMI output
• Fanless design, metal housing, TPM 2.0 support
• 12 V DC input (Din4 pin); optional 12 V 84 W adapter

Display

• Size: 19.0 inches
• Resolution: 1280 × 1024
• Brightness: 400 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Touch options: Resistive touch (optional) or protection glass (optional)

System

• Processor: Intel® Pentium® N4200
• Memory: Dual-channel SO‑DIMM (non-ECC), up to 16 GB (2 x SO‑DIMM)
• Storage options: onboard SSD defaults and expandable via SATA/M.2
• Security: TPM 2.0
• OS support (optional): Windows 10 IoT Enterprise (64-bit), Linux distributions (per configuration)
• Optional WLAN/BT via M.2 2230 E‑Key

Mechanical

• Dimensions: 474 × 384 × 78 mm
• Cut-out: 431 × 341 mm
• Weight: 6.9 kg
• Mounting: panel mount (default); VESA mount optional
• Enclosure: metal housing; fanless cooling

Environment

• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Operating humidity: 10% to 90% RH, non‑condensing

Certifications

• CE
• FCC

I/O ports

• USB: 4 x USB3.2 Gen1 (Type‑A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2242 B‑Key (SATA SSD), M.2 2230 E‑Key (Wi‑Fi), PCIe 2.0 x1 slot

Accessories

• 100–240 V AC to 12 V DC adapter (optional), power cord, VESA screws, mounting clips, driver CD & manual (per configuration)

Applications

• Machine control, factory automation, operator HMI, OEM integrations and embedded industrial systems
