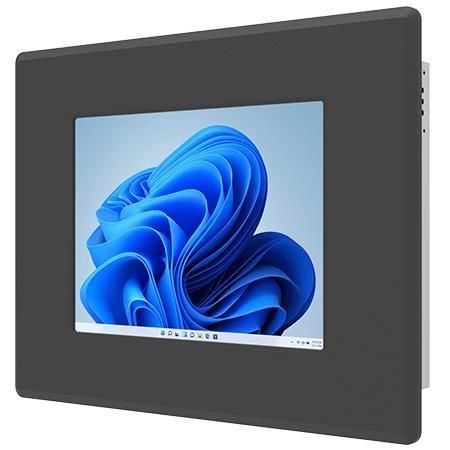

Resistive touch screen panel PC R08IAN3S-PMU1

TFT LCD8.4"Intel® Processor N100

Overview
The Winmate R08IAN3S-PMU1 is an 8.4-inch panel-mount Panel PC for machine control, factory automation and operator HMI. It supports Intel® Alder Lake‑N processors (N100 default, N150 optional) with integrated Intel® UHD graphics, fanless cooling and a metal enclosure for industrial deployment. The device provides flexible I/O and dual 2.5 GbE for reliable connectivity in embedded environments.

Key features

• 8.4" SVGA (800 x 600) TFT LCD, 600 nits
• Intel® Alder Lake‑N N100 (default) or N150 (optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet controllers
• Multiple I/O: USB‑C (DP‑Alt), USB 3.2 Gen2/Gen1, USB 2.0, COM ports, HDMI (optional)
• Panel mount standard; VESA mount optional

Display

• Size: 8.4 inches
• Resolution: 800 x 600 (SVGA)
• Brightness: 600 nits
• Contrast ratio: 600:1
• Viewing angles: 75°/75°/60°/70°
• Active area: 170.4 x 127.8 mm
• Touch / Glass: Resistive touch optional; protection glass optional

System specification

• Processor: Intel® N100 (6M cache, up to 3.40 GHz) default; Intel® N150 (6M cache, up to 3.60 GHz) optional
• Memory: 4 GB default; options 8 GB, 16 GB (SO‑DIMM DDR5‑4800)
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD when NVMe not present
• Ethernet: Dual Intel® 2.5 GbE
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64‑bit, Windows 11 Pro 64‑bit, Linux Ubuntu 24.04 (Ubuntu does not support Wake on Touch)
• Wireless: Optional via M.2 2230 E‑Key slot

Mechanical

• Dimensions: 275 x 216 x 62 mm
• Cut out: 237 x 177 mm
• Weight: 1.9 kg
• Mounting: Panel mount (standard); VESA optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certifications

• CE
• FCC

I/O ports

• USB: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (supports DP Alt mode)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2230 E‑Key slot for Wi‑Fi module
• Indicators: LEDs for power and storage; brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100–240V AC to DC adapter
• Power cord
• VESA screws (if VESA selected)
• Mounting clips

Power

• Rated input: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: R08IAN3S-PMU1
• Brand: Winmate
• Display: 8.4" SVGA (800 x 600), 600 nits, 600:1 contrast
• Processor: Intel® N100 (default) or N150 (optional)
• Memory: SO‑DIMM DDR5‑4800, up to 16 GB
• Storage: 128 GB SSD default; multiple SSD/HDD options
• Ethernet: Dual Intel® 2.5 GbE
• I/O: HDMI (opt.), USB‑C DP‑Alt, USB 3.2 Gen2/Gen1, USB 2.0, COM options
• Mounting: Panel mount standard; VESA optional
• Dimensions / Weight: 275 x 216 x 62 mm / 1.9 kg
• Operating temp/humidity: 0°C to 50°C; 10%–90% RH non‑condensing
• Certifications: CE, FCC
