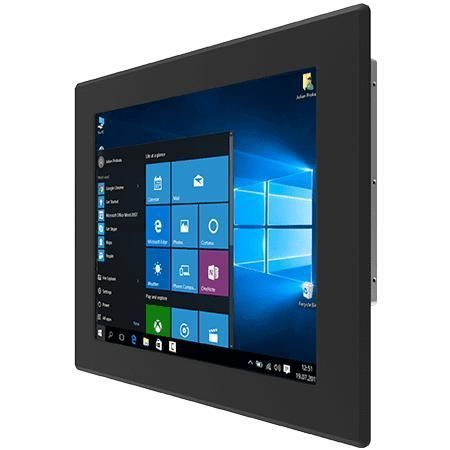

Resistive touch screen panel PC R17IT3S-PMM1

TFT LCD17"Intel® Core™ i5-1135G7

Overview
Winmate R17IT3S-PMM1 is a 17-inch panel-mount Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). Designed for machine control, factory automation and operator HMI, it delivers fanless, ultra-low power operation, stable hardware integration and long lifecycle availability for industrial, OEM and system integrator applications.

Key features

• 17” TFT XGA LCD (1280 x 1024)
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM, DDR4 3200 MHz (max. 32 GB)
• Dual integrated Intel® Ethernet (2 x 2.5 Giga LAN RJ45)
• 1 x M.2 Key M slot for M.2 2242 SATA III; optional M.2 2280 NVMe

Product highlights

• Touch / Protective glass options: Choose resistive touch screen or protection glass when touch is not required.
• Low power & fanless: Energy-efficient design with passive cooling suitable for continuous industrial operation.
• Flexible mounting: Panel mount (default). Optional VESA mount; includes mounting clips and VESA screws.

Certifications

• CE
• FCC

Technical specifications

• Display: 17.0" TFT XGA (1280 x 1024), Brightness: 350 nits, Contrast: 1000:1, Viewing angles: 85/85/80/80, Active area: 337.920 x 270.336 mm
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB (default); optional 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD (default); optional 256/512 GB / 1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional); 1 x M.2 2280 M-Key (NVMe optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: Optional (M.2 2230 E-Key slot)
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Indicators: Power LED, Storage LED
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; Adapter: 12V 120W (accessory)
• Mechanical: Dimensions 440 x 360 x 80 mm; Cut out 394 x 314 mm; Weight 5.9 kg
• Mounting: Panel mount (default); VESA mount optional. Includes VESA screws and mounting clips.
• Enclosure: Metal housing; Cooling: Fanless design
• Environmental: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
