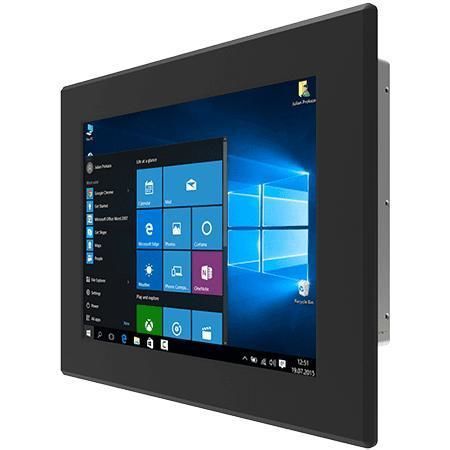

Resistive touch screen panel PC R15IAD3S-PMC3

15"Intel® Core i5-1235U1024 x 768

Overview
Winmate R15IAD3S-PMC3 is a 15-inch panel-mount Panel PC powered by 12th Gen Intel® Core™ i5-1235U designed for machine control, factory automation and operator HMI applications. It provides industrial-grade interfaces, long life-cycle availability and fanless operation for embedded and production environments.

Key features

• 15.0" display, 1024 x 768 resolution, 300 nits
• Intel® Core™ i5-1235U (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32GB
• Integrated dual 2.5 Gigabit Ethernet
• Multiple I/O: 2 x USB 3.2 Gen2x1, serial ports, optional HDMI
• 12V DC input, fanless metal housing

Product highlights

• Alder Lake CPU for efficient multitasking in industrial workloads
• Configurable front surface: resistive touch or protection glass
• Low power consumption and passive cooling for continuous operation
• Flexible mounting: panel mount standard, VESA optional
• Security support with TPM 2.0 and standard certifications (CE, FCC)

Technical specifications

• Model: R15IAD3S-PMC3 — Brand: Winmate
• Display: 15.0" / 1024 x 768 / Brightness 300 nits / Contrast 2000:1 / Active area 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; options 16GB / 32GB; 1 x SODIMM DDR5 4800MHz
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x M.2 2280 (NVMe) + 1 x SATA III (2.5") optional
• Ethernet: 2 x integrated 2.5 Giga LAN (RJ45)
• I/O: 2 x USB 3.2 Gen2x1, 1 x RS232/422/485 (default RS232), 1 x RS232, 1 x HDMI 2.0 (optional), audio: 2 x speaker
• Expansion: 1 x M.2 2230 E-Key for Wi‑Fi, TPM 2.0
• Mechanical: 400 x 320 x 69 mm; cut-out 359.6 x 274.1 mm; weight 5.1 kg; metal enclosure; fanless
• Power: 1 x 12V DC input (2.5φ DC jack); adapter 12V 120W available
• Environment: Operating 0°C to 50°C; humidity 10%–90% RH non-condensing; storage -10°C to 60°C
• Certifications: CE, FCC
• Accessories: AC/DC adapter 100~240V, power cord, VESA screws and mounting clips (as applicable)
