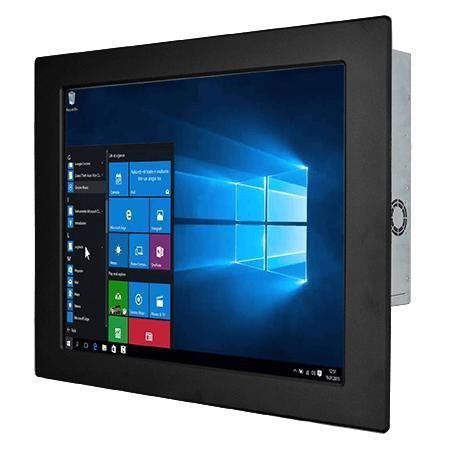

Resistive touch screen panel PC R19IF7T-PMA1

19"9th Generation Intel® Core™Intel® Core™ i7-9700TE

Overview
Winmate R19IF7T-PMA1 is a 19" panel-mount industrial Panel PC powered by Intel® 9th Generation Core™ i3/i5/i7 (Coffee Lake Refresh) processors. It is designed for machine control, factory automation and operator HMI with focus on reliable field operation, low power consumption, flexible mounting and long lifecycle availability.

Key Features

• 19" 1280 x 1024 resolution display
• Intel® 9th Generation Core™ i3/i5/i7 (Coffee Lake Refresh)
• Flexible storage: one 2.5" HDD and one SSD; M.2 support
• Multiple I/Os including serial ports and 4 x USB 3.2 Gen.1 ports
• 12 V DC power input (Din4 pin connector)
• DisplayPort support up to 4096 x 2304 @ 60 Hz; HDMI support up to 4096 x 2304 @ 24 Hz (optional)

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (optional) or Protection Glass without touch (optional)
• Panel Brightness: 400 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 376.32 x 301.06 mm

System Specification

• Processors (Default / Optional): Intel Core i7-9700TE 1.8GHz (up to 3.8GHz) default; Intel Core i5-9500TE 2.2GHz (up to 3.6GHz) optional; Intel Core i3-9100TE 2.2GHz (up to 3.2GHz) optional
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; options 256GB / 512GB / 1TB / 2TB; 2 x SATA III for 2.5" SSD/HDD with optional RAID 0/1; M.2 2280 M-Key (NVMe or SATA) and M.2 2242 B-key support
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options (20.04 or 18.04)
• WLAN / BT: optional support via M.2 2230 E-Key

Mechanical

• Dimensions: 474 x 384 x 78 mm
• Cut out: 431 x 341 mm
• Weight: 6.9 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing
• Cooling: Fan design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

Certifications

• CE
• FCC

I/O and Interfaces

• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x Gigabit LAN (RJ45)
• Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 optional
• Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• Expansion: 1 x M.2 2280/2242 M-Key (NVMe or SATA SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 3.0 x16 slot optional
• Indicators & Controls: LED indicator for power; LED indicator for storage; 1 x Brightness adjustment knob; 1 x Power button; 1 x Reset button
• Power Input: 1 x 12V DC Din4 pin connector

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws
• Mounting clips
• Driver CD & manual (packaged accessory)

Specifications

• Model: R19IF7T-PMA1
• Display size: 19.0"
• Resolution: 1280 x 1024
• Processor: Intel® Core™ i7/i5/i3 (9th Gen, Coffee Lake Refresh)
• Chipset: Intel® Q370
• Memory: 2 x SO-DIMM DDR4, up to 64GB
• Storage: M.2 NVMe/SATA + 2 x SATA III 2.5" (RAID optional)
• Network: 2 x Gigabit LAN
• USB ports: 4 x USB 3.2 Gen1
• Serial ports: RS232/422/485 and RS232
• Video: DP1.2 (default), HDMI 1.4 optional
• Audio: Mic-in, Line-out, 2 x speakers
• Security: TPM 2.0
• Power: 12V DC (Din4)
• Dimensions / Cut out: 474 x 384 x 78 mm / 431 x 341 mm
• Weight: 6.9 kg
• Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Humidity: 10% to 90% RH non-condensing
• Certifications: CE, FCC
