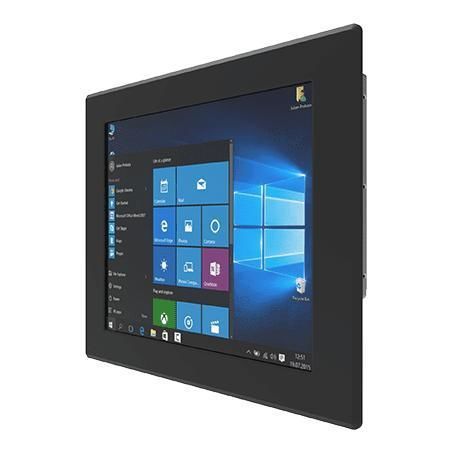

Resistive touch screen panel PC R17IT7T-PMM1

17"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Product summary
Winmate R17IT7T-PMM1 is a 17-inch panel-mount Panel PC powered by Intel® Core™ i5 (Tiger Lake) for machine control, factory automation and operator HMI. The unit targets industrial buyers, OEMs and system integrators needing a compact panel-mount HMI with multiple I/O, expansion options and long lifecycle support.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) / i5-1145G7E (with vPro)
• Display: 17.0", 1280 x 1024, 350 nits, 1000:1 contrast
• Optional resistive touch or protection glass (no touch)
• Multi display interfaces: DP / HDMI / LVDS / eDP
• Multiple I/O: 2 serial ports, 4 x USB 3.2 Gen1 (Type-A), 1 x Gigabit LAN + 1 x 2.5GbE
• 12V single-voltage DC input; fanless metal housing

Overview
The R17IT7T-PMM1 provides a compact industrial HMI platform that balances processing performance, display options and field connectivity. It supports common industrial OS choices and optional wireless modules for network flexibility.

Resistive Touch / Optional Protective Glass
Choose a resistive touch panel for operator input or a protection glass option when a non-touch display is required for harsh environments or cleaning procedures.

Low Power Consumption & Cooling
Fanless design and efficient thermal layout reduce moving parts and support continuous operation in production environments while maintaining low power draw.

Mounting and installation
Standard panel-mount configuration with optional VESA mounting enables integration into control cabinets, machine panels or equipment enclosures. Cut-out dimensions: 394 x 314 mm; device dimensions: 440 x 360 x 81 mm.

Certifications

• CE
• FCC

Technical specifications

• Model: R17IT7T-PMM1
• Brand: Winmate
• Display size / resolution: 17.0" / 1280 x 1024
• Touch / glass: Resistive touch (optional) / Protection glass (optional)
• Processor: Intel Core i5-1135G7 (2.4GHz up to 4.2GHz), optional i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; options up to 4TB; 1 x SATA III for 2.5" drive (optional); M.2 2280 NVMe slot
• Ethernet: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi), PCIe 4.0 (x16) slot (x4 signal)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Ubuntu 22.04 (Wake on Touch not supported)
• Power input / adapter: 1 x 12V DC (Din4); adapter 12V 120W (accessory)
• Dimensions / weight: 440 x 360 x 81 mm / 5.9 kg
• Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C; Operating humidity: 10%–90% RH non-condensing
• Indicators & controls: LED power, LED storage, brightness knob, power and reset buttons
• Included / optional accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
