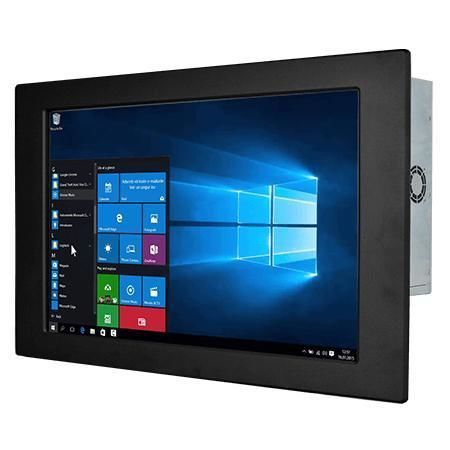

Resistive touch screen panel PC W22IF7T-PMA3

LCDLED backlight21.5"

Overview
Winmate W22IF7T-PMA3 is a 21.5-inch panel-mount Panel PC for machine control, factory automation and operator HMI. Powered by Intel® 9th Gen Core™ i3/i5/i7 processors, it provides flexible storage, multiple I/O, TPM 2.0 security and options for Windows 10 IoT Enterprise or Linux, in a metal housing with fan cooling for continuous industrial operation.

Key Features

• 21.5" FHD display (1920 x 1080), 250 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• M.2 NVMe/SATA + 2 x SATA III for 2.5" SSD/HDD (RAID 0/1 optional)
• 4 x USB 3.2 Gen1, 2 x serial ports, 2 x Gigabit LAN
• 12 V DC input (Din4 pin); DP1.2 default, HDMI 1.4 optional
• Resistive touch or protection glass options; TPM 2.0

Certifications

• CE
• FCC

Display

• Size: 21.5 inches
• Resolution: 1920 x 1080
• Brightness: 250 nits
• Contrast: 3000:1
• Viewing angles: 89/89/89/89
• Active area: 476.64 x 268.11 mm
• Touch / Glass: Resistive touch (optional) or protection glass (optional)

System Specification

• Processor: i7-9700TE (default), optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 1 x M.2 2280 M-Key (NVMe/SATA) + 1 x M.2 2242 B-key; 2 x SATA III for 2.5" drives; default 128 GB SSD, optional up to 2 TB
• Ethernet: 2 x Intel® Gigabit controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) or Linux options
• Wireless: optional M.2 2230 E-Key for Wi‑Fi/BT

Mechanical

• Dimensions: 534 x 349 x 81 mm
• Cut-out: 508 x 302 mm (variant 506 x 302 mm)
• Weight: ~7.2 kg
• Mounting: Panel mount default; VESA optional
• Enclosure: Metal housing; Fan cooling design

Environment

• Operating humidity: 10%–90% RH non‑condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C

IO Ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 speakers
• Expansion: M.2 2280/2242, M.2 2230 E-Key, optional PCIe 3.0 x16
• Indicators & knobs: Power and storage LEDs; brightness adjustment knob
• Power input: 12 V DC (Din4 pin)

Control

• Buttons: Power and Reset

Accessory

• 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips, driver CD & manual

Technical specifications

• Model: W22IF7T-PMA3
• Brand: Winmate
• Display: 21.5" 1920x1080, 250 nits
• CPU options: i7-9700TE / i5-9500TE / i3-9100TE
• Memory: up to 64 GB DDR4
• Storage: M.2 NVMe/SATA + 2 x SATA III
• I/O: 4 x USB3.2, 2 x GbE, serial ports, DP/HDMI, audio
• Power: 12 V DC (Din4 pin)
• Dimensions / Weight: 534 x 349 x 81 mm / ~7.2 kg
• Operating temp/humidity: 0°C–50°C; 10%–90% RH
• Certifications: CE, FCC
