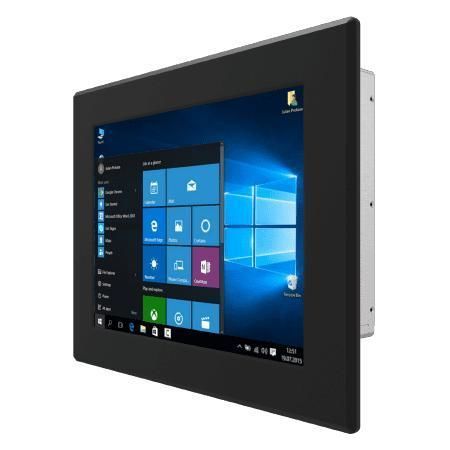

Resistive touch screen panel PC R15IT7T-PMC3

15"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Overview
Winmate R15IT7T-PMC3 is a 15.0-inch panel mount Panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who require long lifecycle availability, multiple I/O and fanless operation for reliable field use.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 1024 x 768 resolution, 300 nits brightness, 2000:1 contrast
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/Os: serial ports, USB, LAN, audio, video outputs
• 12V DC single-voltage input; fanless metal housing

Product highlights and features

• Display surface options: resistive touch (optional) or protection glass (no touch)
• Fanless design and optimized heat dissipation for continuous industrial operation
• Mounting: panel mount (default) or optional VESA; rear and flush mounting options
• Security: TPM 2.0 and optional wireless modules (M.2 2230 E-Key)

Display

• Size: 15.0 inches
• Touch / Glass: resistive touch (optional); protection glass without touch (optional)
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm

System specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet controllers (1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (Wake on Touch not supported)

Mechanical

• Dimensions (W x H x D): 400 x 320 x 70 mm
• Cut out: 360 x 274 mm
• Weight: 4.2 kg
• Enclosure: metal housing
• Mounting: panel mount (default), VESA mount (optional)

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DP 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: LEDs for power and storage
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC Din4-pin connector

Control & accessories

• Buttons: 1 x power, 1 x reset
• Accessories: 100–240V AC to DC adapter (12V 120W), power cord, VESA screws, mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Technical specifications

• Model: R15IT7T-PMC3
• Brand: Winmate
• Display size: 15.0"
• Resolution: 1024 x 768
• CPU: Intel Core i5-1135G7 (Tiger Lake)
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage: 128 GB SSD default; options up to 4 TB; optional SATA III bay
• LAN: Gigabit + 2.5 Gigabit
• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: RS232/422/485 + RS232
• Video outputs: DP1.4 (default), HDMI 2.0 (optional)
• Power input: 12V DC (Din4)
• Mounting: Panel mount (default), VESA (optional)
• Dimensions: 400 x 320 x 70 mm
• Weight: 4.2 kg
• Operating temp.: 0°C to 50°C; Storage temp.: -10°C to 60°C
• Humidity: 10%–90% RH non-condensing
• Certifications: CE, FCC
