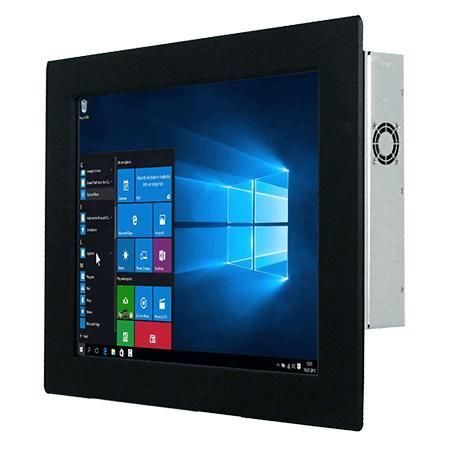

Resistive touch screen panel PC R15IAD7T-PMC3

LCD15"Intel® Core™ i9-12900TE

Product summary
Winmate R15IAD7T-PMC3 is a 15-inch panel-mount industrial Panel PC based on 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake). It is engineered for machine control, factory automation and operator HMI, offering flexible mounting, extensive I/O and long-term platform availability.

Key features

• 15-inch 1024 x 768 panel with optional resistive touch or protection glass
• 12th/14th Gen Intel® Core™ i3/i5/i7/i9 T/TE series CPU options
• 2 x SO-DIMM DDR5 4800MHz, up to 64 GB
• Integrated dual 2.5 Gigabit Ethernet and 4 x USB 3.2 Gen2x1
• DP1.4a (default) with optional HDMI 2.0b; configurable serial ports and audio
• 12 V DC input (Din4), metal enclosure, fan cooling

Overview

• Designed for industrial integration: suited to control panels, HMI stations and embedded applications requiring reliable continuous operation.
• Flexible surface options: resistive touch or protection glass (both optional) to match operator and environmental requirements.
• Low power draw and efficient thermal design for stable long-term use on production lines.
• Mounting versatility: default panel mount with optional VESA and other mounting clips for varied installation needs.

Certifications

• CE
• FCC

Display

• Size: 15.0 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive touch (optional) or Protection glass without touch (optional)
• Brightness: 300 nits
• Contrast: 2000:1
• Active area: 304.1 x 228.1 mm; View angles 88/88/88/88

System

• Processor: Default Intel® Core™ i3-12100TE; optional i5-12500TE, i7-12700TE, i9-12900TE and 14th‑gen T-series (e.g. i3-14100T, i5-14500T, i7-14700T, i9-14900T)
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 2 x SATA III for 2.5" drives (optional, RAID support); 1 x M.2 2280 NVMe slot
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (Wake on Touch unsupported on Ubuntu)

Mechanical

• Dimensions: 400 x 320 x 79 mm; Cut-out: 359 x 273 mm
• Weight: 4.2 kg
• Mounting: Panel mount (default); optional VESA and other mounting clips
• Enclosure: Metal housing; Cooling: fan design

Environment

• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

IO & Expansion

• USB: 4 x USB 3.2 Gen2x1 (Type-A, 10 Gbps)
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x 2.5 Gbps RJ45
• Video: 1 x DP1.4a (DP++), up to 4096 x 2160 @60Hz (default); HDMI 2.0b optional
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12 V DC (Din4)

Control & Accessories

• Buttons: Power and Reset
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips (as configured)

Model / Brand

• Model: R15IAD7T-PMC3
• Brand: Winmate
