Resistive touch screen panel PC R15IF7T-PMC3

LCD15"Intel® Core™ i7-9700TE

Overview

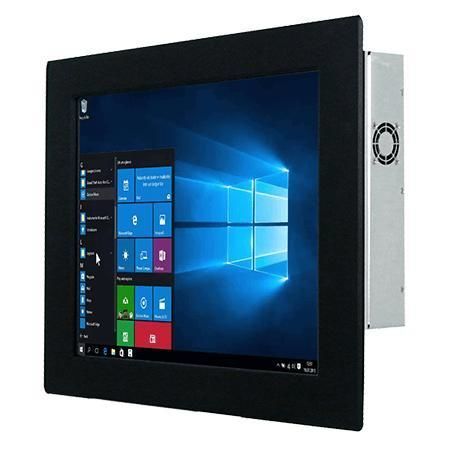

Winmate R15IF7T-PMC3 is a 15-inch panel-mount industrial Panel PC powered by Intel® 9th Generation Core™ i3/i5/i7 (Coffee Lake Refresh). It is engineered for machine control, factory automation and operator HMI deployments that require reliable field operation, flexible storage and extensive I/O connectivity. Configurable CPU, memory and storage options; supports rear or VESA mounting.

Key Features

• 15.0" display, 1024 x 768 resolution
• Intel® 9th Gen Core™ i3/i5/i7 processors (Coffee Lake Refresh)
• Flexible storage: M.2 NVMe/SATA plus 2 x SATA III for 2.5" SSD/HDD
• Multiple I/Os including 2 serial ports and 4 x USB 3.2 Gen1 Type-A
• 12 V DC power input (DIN4 pin connector)
• DisplayPort up to 4096 x 2304 @ 60 Hz; HDMI optional

Display

• Size: 15.0 inches
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88/88/88/88
• Active Area: 304.1 x 228.1 mm
• Touch/Glass: Resistive touch optional; protection glass optional

System Specification

• Processor: i7-9700TE (default), optional i5-9500TE or i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB/2 TB; M.2 2280 M-Key NVMe/SATA support
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux options available
• WLAN/Bluetooth: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 400 x 320 x 70 mm
• Cut-out: 359 x 273 mm (some documents list 360 x 273 mm)
• Weight: approx. 4.2 kg
• Mounting: Panel mount default; VESA optional
• Enclosure: metal housing
• Cooling: fan design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

IO Ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (configurable, default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2 x Speaker
• Expansion: M.2 2280/2242 M-Key, M.2 2230 E-Key, optional PCIe 3.0 x16
• Indicators: power and storage LEDs
• Brightness control: adjustment knob
• Power input: 12 V DC DIN4

Control

• 1 x Power button
• 1 x Reset button

Accessories

• 100~240 V AC to DC adapter
• Power cord
• VESA screws and mounting clips
• Driver CD and manual (or equivalent downloads)

Certifications

• CE
• FCC

Technical specifications

• Model: R15IF7T-PMC3
• Display: 15.0" / 1024 x 768 / 300 nits
• CPU options: i7-9700TE / i5-9500TE / i3-9100TE
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage: M.2 NVMe/SATA + 2 x SATA III (2.5")
• LAN: 2 x Gigabit
• TPM: 2.0
• Ports: 4 x USB3.2 Gen1 Type-A, serial ports, DP1.2 (std), HDMI (opt)
• Power: 12 V DC (DIN4)
• Dimensions / Weight: 400 x 320 x 70 mm / ~4.2 kg
• Mounting: panel mount (default), VESA optional
• Operating: 0°C–50°C, 10%–90% RH
