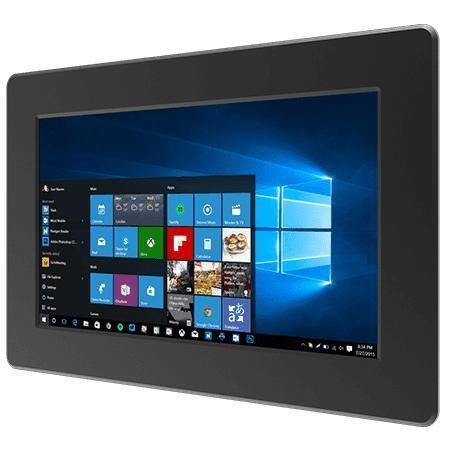

Resistive touch screen panel PC W18IT7T-PMA2

LCDLED backlight18.5"

Overview
Winmate W18IT7T-PMA2 is an 18.5 in panel-mount Panel PC based on Intel® Core™ Tiger Lake i5 processors. It is engineered for machine control, factory automation and operator HMI applications that require stable hardware integration, durable field operation and long lifecycle availability. The unit supports multiple display interfaces, extensive I/O and flexible mounting options for embedded and mission-critical installations.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 18.5 in display, 1366 x 768 resolution
• Multi-display support: DP / HDMI / LVDS / eDP
• Rich I/O: serial ports, USB 3.2 ports, Gigabit + 2.5G LAN
• 12 V single-voltage DC power input; fanless metal enclosure

Operator convenience & durability

• Optional resistive touch or protection glass (non-touch) to match operation requirements
• Fanless design for low power consumption and reliable heat dissipation in industrial environments
• Standard panel mount with optional VESA or rear mounting for flexible integration

Certifications
CE, FCC

Recommended applications
Machine control, factory automation, operator HMI, OEM integration, industrial embedded systems.

Technical specifications

• Model: W18IT7T-PMA2
• Brand: Winmate
• Display size: 18.5 in
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Resolution: 1366 x 768
• Brightness: 450 nits
• Contrast ratio: 1000:1
• Viewing angles: 85 / 85 / 80 / 80
• Active area: 409.8 x 230.4 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz) / i5-1145G7E (optional)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit LAN (RJ45); 1 x 2.5 Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• WLAN / Bluetooth: optional via M.2 2230 E-Key
• Mechanical dimensions: 520 x 340 x 70 mm; Cut-out: 462 x 285 mm
• Weight: 5.3 kg
• Mounting: Panel mount (standard); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x DisplayPort 1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: Power LED, Storage LED
• Brightness control: 1 x brightness knob
• Power input: 1 x 12 V DC (Din4 pin connector); Adapter: 12 V 120 W (accessory)
• Buttons: 1 x Power; 1 x Reset
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips
• Certifications: CE, FCC
