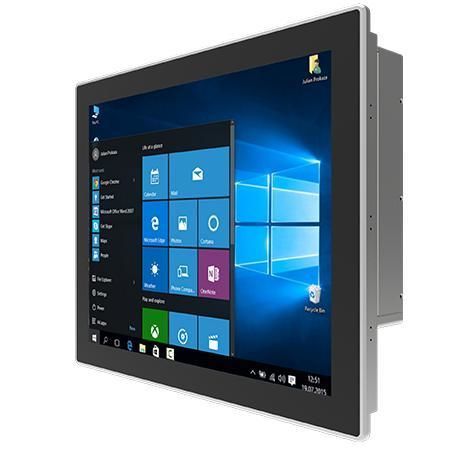

Resistive touch screen panel PC R19IT7T-PMM1

19"Intel® Core™ i5-1135G71280 x 1024

Overview
Winmate R19IT7T-PMM1 is a 19.0-inch industrial panel-mount Panel PC based on Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI. The unit features a fanless metal enclosure, flexible mounting (panel, rear, VESA), long lifecycle availability and optional wireless and security modules.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (non-vPro) or i5-1145G7E (with vPro)
• 19.0" display, 1280 x 1024 resolution, 250 nits, 1000:1 contrast
• Touch options: resistive touch or protection glass (optional)
• Multi-display interfaces: DP1.4, HDMI 2.0 (optional), LVDS, eDP
• I/O: 4 × USB 3.2 Type-A, serial ports (RS232/422/485), 1 × Gigabit LAN + 1 × 2.5 Gigabit LAN
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi), PCIe 4.0 x16 (x4 signal)
• 12V DC single-voltage input (Din4); recommended adapter 12V 120W

Highlights / Product details
Fanless metal housing and optimized thermal design enable continuous operation in production environments. Multiple mounting and I/O options support OEM integration, system upgrades and embedded installations where long-term availability and serviceability are required.

Certifications
CE, FCC

Technical specifications

• Display: 19.0 inches; Resolution 1280 x 1024; Brightness 250 nits; Contrast 1000:1; Active area 376.32 x 301.06 mm; View angles 85/85/80/80
• Processor: Intel Core i5-1135G7 (2.4GHz, up to 4.2GHz)
• Memory: 2 × non-ECC SO-DIMM, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 × SATA III for 2.5" SSD/HDD (optional)
• Networking: 1 × Gigabit LAN (RJ45); 1 × 2.5 Gigabit LAN (RJ45)
• I/O: 4 × USB3.2 (Type-A); Serial: 1 × RS232/422/485 (default RS232) + 1 × RS232; Video: 1 × DP1.4 (default), 1 × HDMI 2.0 (optional); Audio: Mic in, Line out
• Expansion: 1 × M.2 2280 M-Key (NVMe); 1 × M.2 2230 E-Key (Wi‑Fi); 1 × PCIe 4.0 x16 (x4 signal)
• Mechanical: 474 × 384 × 78 mm; Cut out 431 × 341 mm; Weight 6.9 kg; Metal housing; Mounting: Open frame (default), Panel mount (optional), VESA (optional)
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Security: TPM 2.0
• Indicators & controls: Power and storage LEDs; Brightness adjustment knob; Power and reset buttons
