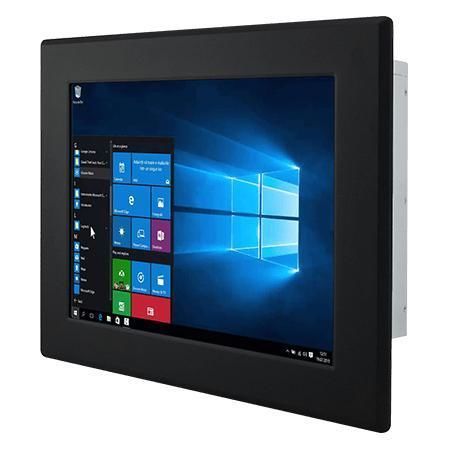

Resistive touch screen panel PC R15IP7T-PMC3

TFT LCD15"Intel® Pentium® N4200

Overview
Winmate R15IP7T-PMC3 is a 15.0-inch panel-mount industrial Panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI, it provides flexible storage options, multiple I/O and a fanless metal housing for reliable industrial integration.

Key Features

• Intel® Pentium® N4200 processor (1.10 GHz base, up to 2.5 GHz burst)
• Flexible storage: 2.5-inch HDD bay, M.2 2242 B-key and optional SATA III ports
• Multiple I/O: 2 serial ports, 4 x USB 3.0 Type-A, 2 x Gigabit LAN
• 12 V DC power input (Din4 pin connector)
• Display support: DisplayPort up to 4096×2160 @60 Hz; HDMI up to 3840×2160 @30 Hz (optional)
• Fanless design, metal enclosure, panel-mount (rear/VESA mounting optional)

Product highlights

• Optional resistive touch or protective glass without touch
• Low power consumption and optimized heat dissipation for continuous operation
• Rear and VESA mounting options for flexible installation

Display

• Size: 15.0 inches
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm
• Touch / Glass: Resistive touch (optional) or protection glass (optional)

System Specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel non-ECC SO-DIMM, up to 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB; 2 x SATA III for 2.5-inch SSD/HDD (optional, RAID support)
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 20.04
• WLAN/Bluetooth: optional via M.2 2230 E-key

Mechanical

• Dimensions: 400 x 320 x 70 mm
• Cut-out: 359 x 273 mm
• Weight: 4.2 kg
• Mounting: Panel mount (standard); VESA mount optional
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; optional dual RS232
• LAN: 2 x Gigabit RJ45
• Video: 1 x DisplayPort 1.2 (default), 1 x HDMI 1.4 (optional), 1 x VGA (optional)
• Audio: 1 x Mic in, 1 x Line out, 2 x Speaker
• Expansion: 1 x M.2 2242 B-key (SATA III SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Indicators: Power and storage LEDs; brightness adjustment knob
• Power input: 1 x 12 V DC Din4 pin connector

Control & Accessories

• Buttons: Power and Reset
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, mounting clips, manual/driver

Power

• Power rating: 12 V DC
• Adapter: 12 V 50 W (optional or included depending on configuration)

Technical specifications

• Model: R15IP7T-PMC3
• Brand: Winmate
• Display: 15.0 inches, 1024 x 768, 300 nits
• Processor: Intel® Pentium® N4200
• Memory: Up to 16 GB
• Storage: M.2 and 2.5-inch SATA options; default 128 GB SSD, up to 1 TB optional
• Network: 2 x Gigabit LAN; TPM 2.0
• Mounting: Panel mount default; VESA optional; metal fanless enclosure
