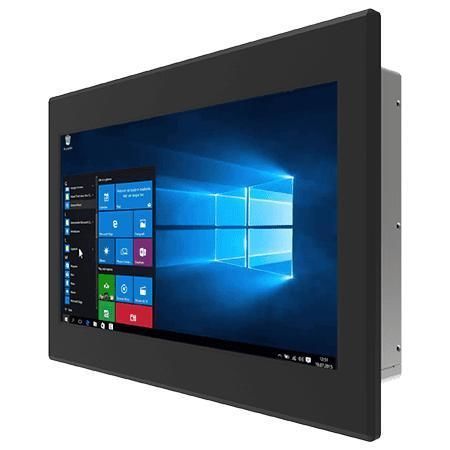

Resistive touch screen panel PC W15IT3S-PMA2

TFT LCD15.6"Intel® Core™ i5-1135G7

Overview
Winmate W15IT3S-PMA2 is a 15.6" panel-mount Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). Designed for machine control, factory automation and operator HMI applications, it provides fanless cooling, low power consumption and flexible mounting for embedded industrial installations.

Key Features

• 15.6" TFT XGA display (1366 x 768), 400 nits
• Intel® Core™ i5-1135G7 CPU (2.4 GHz, up to 4.2 GHz)
• Fanless thermal design and metal enclosure
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB); default 4 GB
• Dual Intel® Ethernet controllers (2 x 2.5 Gbps LAN)
• M.2 storage: M.2 2242 SATA III (Key M); optional M.2 2280 NVMe

Operator convenience & Options

• Optional resistive touch or protection glass (cover glass without touch)
• Multiple mounting: panel mount (standard) and optional VESA
• Optional WLAN/Bluetooth via M.2 2230 E-Key; TPM 2.0 and Windows/Linux OS options

Certifications

• CE
• FCC

Technical specifications

• Display: 15.6" (1366 x 768), 400 nits, 500:1 contrast, active area 344.232 x 195.536 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Memory: 4 GB default; configurable to 8/16/32 GB; 1 x SO-DIMM DDR4-3200
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" drives
• IO: 2 x USB3.2 Gen2 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 2 x 2.5 Giga LAN RJ45; HDMI 2.0 optional; 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Mechanical: 400 x 280 x 74.5 mm; cut-out 368.3 x 232 mm; weight 3.9 kg; metal housing
• Environment: operating 0°C to 50°C; storage -10°C to 60°C; 10%–90% RH non-condensing
• Power: 12 V DC input; adapter 12 V 120 W
