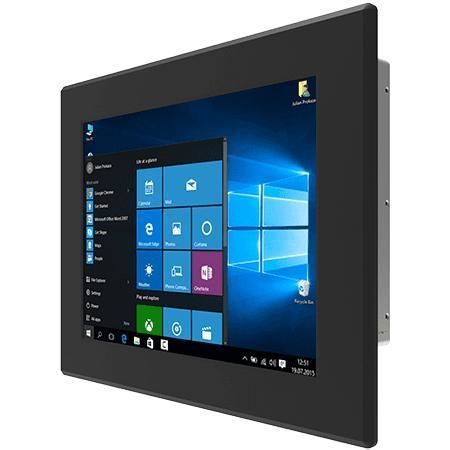

Resistive touch screen panel PC R15IT3S-PMC3

TFT LCD15"Intel® Core™ i5-1135G7

Overview
Winmate R15IT3S-PMC3 is a 15-inch panel-mount Panel PC with Intel® Core™ i5-1135G7, designed for machine control, factory automation and operator HMI in industrial and embedded applications. The fanless metal system delivers low power operation, multiple mounting options (panel mount default; VESA optional) and long lifecycle availability.

Key features

• 15-inch TFT XGA display (1024 x 768), 300 nits, 2000:1
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5 G LAN)
• M.2 Key M (M.2 2242 SATA III; optional M.2 2280 NVMe) and M.2 E-Key for Wi‑Fi

Product highlights
Flexible surface options: resistive touch or optional protection glass without touch function for installations where touch is not required.
Thermal and power optimization: fanless architecture and low-power components for continuous operation in production environments.
Mounting versatility: default panel mount plus optional VESA and rear-mount accessories for varied integrations.

Certifications

• CE
• FCC

Technical specifications

• Model: R15IT3S-PMC3
• Brand: Winmate
• Display: 15.0" XGA (1024 x 768), 300 nits, 2000:1
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" (optional); M.2 slots
• Ethernet: 2 x 2.5 G LAN (Intel® controllers)
• IO: 2 x USB3.2 Gen2x1, serial ports (RS232/422/485), HDMI 2.0 (optional), audio
• Security: TPM 2.0
• Dimensions: 400 x 320 x 69 mm; Cut out: 359.6 x 274.1 mm; Weight: 5.1 kg
• Environmental: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH (non-condensing)
• Power: 12V DC input; adapter 12V 120W
