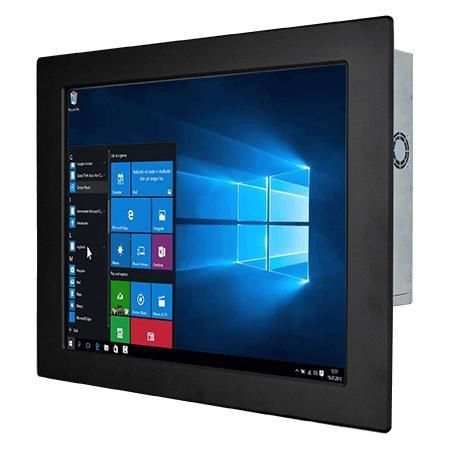

Resistive touch screen panel PC R17IF7T-PMM1

17"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

Overview
The R17IF7T-PMM1 is a 17-inch panel-mount Panel PC built for machine control, factory automation and operator HMI. Based on Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh) platforms, it offers flexible storage, multiple I/O and a metal enclosure for industrial integration. Model: R17IF7T-PMM1.

Key Features

• 17-inch display, 1280 x 1024 resolution, 350 nits, 1000:1 contrast
• Intel® 9th Gen Core™ i3 / i5 / i7 processor options (default: i7-9700TE)
• Flexible storage: 1 x 2.5" bay + M.2 (NVMe/SATA), 2 x SATA III supporting RAID 0/1 (optional)
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN (Intel®), 2 x serial ports (RS232/422/485 support)
• 12 V DC input (Din4 pin); DP1.2 standard, HDMI 1.4 optional

Product Details

• Display options: resistive touch screen (optional) or protection glass without touch
• Memory: 2 x non-ECC SO‑DIMM up to 64 GB (32 GB per slot)
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key for Wi‑Fi, optional PCIe 3.0 x16
• Mechanical: dimensions 440 x 360 x 81 mm; cut-out 394 x 314 mm; weight ~5.9 kg; metal housing with fan cooling
• Mounting: panel mount standard, VESA mount optional; mounting clips and VESA screws available

Certifications

• CE
• FCC

Technical specifications

• Display: 17.0 inches, 1280 x 1024, 350 nits, 1000:1, view angles 85/85/80/80
• Processor options: Core i7-9700TE (1.8 GHz up to 3.8 GHz) default; i5-9500TE; i3-9100TE
• Chipset: Intel® Q370
• Storage: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB; M.2 NVMe/SATA support
• Ethernet: 2 x Intel® Gigabit controllers (I211-AT, I219-LM)
• Security: TPM 2.0
• OS: optional Windows 10 IoT Enterprise 64-bit or Linux Ubuntu 18.04/20.04
• Power input: 12 V DC (Din4 pin); accessories: 100~240 V AC‑DC adapter and power cord
• Operating: 0°C to 50°C; storage: -10°C to 60°C; humidity 10%–90% RH non-condensing
• I/O: 4 x USB3.2 Gen1 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x RJ45; Video: DP1.2 (default), HDMI1.4 (optional); Audio: Mic in, Line out, 2 speakers
