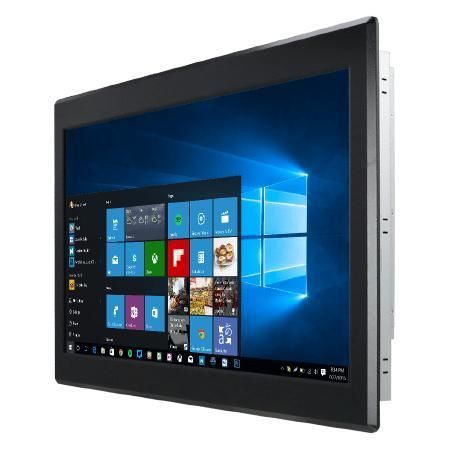

Resistive touch screen panel PC W22IT7T-PMA3

21.5"Intel® Core™ i5-1135G7Intel® Core™ i5-1145G7

Overview
Winmate W22IT7T-PMA3 is a 21.5-inch Intel Core i5 (Tiger Lake) Panel Mount Panel PC designed for machine control, factory automation and operator HMI in industrial, embedded or mission-critical environments. It provides stable hardware integration, a metal enclosure and long lifecycle availability.

Key features

• 21.5-inch 1920 x 1080 Full HD display
• Intel Core Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• Multi-display support via DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen ports, Gigabit + 2.5G LAN
• 12V DC single-voltage input; fanless metal housing for industrial use

Product highlights

• Resistive touch option or protection glass (non-touch) to suit different operator environments
• Low power consumption and efficient heat dissipation for continuous operation
• Rear, panel and VESA mounting options for flexible installation

Specifications (selected)

• Display: 21.5 in; 1920 x 1080; panel brightness 250 nits; contrast ratio 3000:1; active area 476.64 x 268.11 mm; view angles 89/89/89/89
• System: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz) or i5-1145G7E (vPro option); 2 x non-ECC SO-DIMM up to 64 GB; default 128 GB SSD; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5-inch drive (optional)
• Networking & Security: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; TPM 2.0
• OS & Wireless: optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit or Linux Ubuntu 22.04 (Ubuntu does not support Wake on Touch); optional WLAN/Bluetooth via M.2 2230
• Mechanical: dimensions 534 x 349 x 81 mm; cut-out 506 x 302 mm; weight 7.2 kg; metal enclosure; fanless design
• Environment: operating temperature 0°C to 50°C; storage temperature -10°C to 60°C; operating humidity 10%–90% RH non-condensing
• I/O Ports: 4 x USB 3.2 Gen2x1 Type-A; serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; video: 1 x DP1.4 (default), optional HDMI 2.0; audio mic in / line out; expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi), PCIe 4.0 x16 slot (x4 signal)
• Power: 1 x 12V DC Din4 connector; adapter 12V 120W

Certifications

• CE
• FCC
