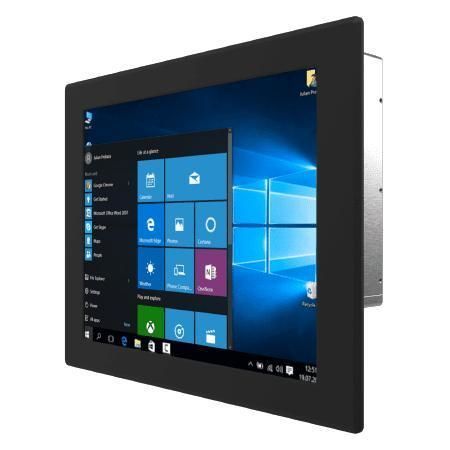

Resistive touch screen panel PC R19IT7T-PMA1

19"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Overview
Winmate R19IT7T-PMA1 is a 19-inch panel-mount Panel PC based on Intel® Core™ Tiger Lake i5 processors (i5-1135G7 / i5-1145G7E). Intended for machine control, factory automation and operator HMI, it provides multi-display interfaces, extensive I/O, fanless cooling and 12V DC single-voltage power input suitable for industrial integration.

Key features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (no vPro) / i5-1145G7E (with vPro)
• 19.0" display, 1280 x 1024 resolution, 400 nits brightness
• Multi-display support via DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/O: serial ports, 4 x USB 3.2 Gen2 Type-A, Gigabit and 2.5G LAN
• 12V DC single-voltage input; fanless thermal design

Highlights

• Touch or non-touch surface options: resistive touch (optional) or protection glass without touch (optional)
• Flexible mounting: open frame (default), panel mount (optional), rear and VESA mounting (optional)
• Hardware security and storage options: TPM 2.0; NVMe and SATA storage supported

Certifications

• CE
• FCC

Display

• Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass Without Touch Function (optional)
• Resolution: 1280 x 1024
• Brightness: 400 nits
• Contrast ratio: 1000:1
• View angles: 85 / 85 / 80 / 80
• Active area: 376.32 x 301.06 mm

System specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7E (with vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (does not support Wake on Touch)
• Wireless / Bluetooth: optional (M.2 2230 E-Key for Wi‑Fi/BT)

Mechanical and enclosure

• Dimensions: 474 x 384 x 78 mm
• Cut out: 431 x 341 mm
• Weight: 6.9 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

IO ports and expansion

• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi module); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators / controls: Power LED; Storage LED; Brightness adjustment knob
• Power input: 1 x 12V DC, Din4 pin connector; adapter: 12V 120W (accessory)

Control and accessories

• Buttons: 1 x Power button; 1 x Reset button
• Accessories: 100~240V AC to DC adapter; Power cord; VESA screws; Mounting clips

Product / Technical specifications

• Model: R19IT7T-PMA1
• Brand: Winmate
• Display size: 19.0"
• Resolution: 1280 x 1024
• CPU: Intel® Core™ i5-1135G7 / i5-1145G7E (Tiger Lake)
• Max memory: up to 64 GB (2 x SO-DIMM)
• Storage options: NVMe / SATA (128 GB default, up to 4 TB)
• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: RS232/422/485 and RS232
• LAN: 1 x Gigabit + 1 x 2.5 Gigabit
• Video: DP1.4 (default), HDMI 2.0 (optional)
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key, PCIe 4.0 x16 (x4 signal)
• Power: 12V DC (Din4 pin); adapter 12V 120W
• Dimensions / Weight: 474 x 384 x 78 mm / 6.9 kg
• Mounting: Open frame / Panel mount (optional) / VESA (optional)
• Enclosure: Metal; Cooling: Fanless
• Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Certifications: CE, FCC
• Security: TPM 2.0
