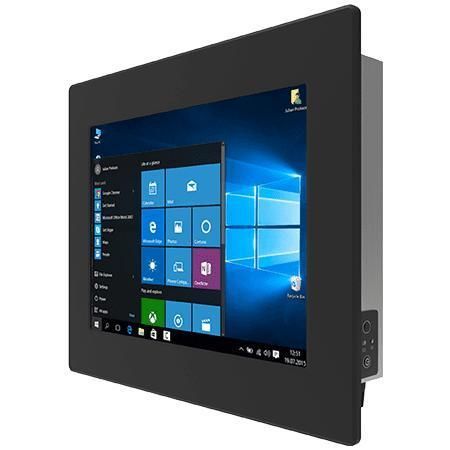

Resistive touch screen panel PC R12IAD3S-PMM2

12.1"12th Generation Intel® Core™Intel® Core i5-1235U

Overview
Winmate R12IAD3S-PMM2 is a 12.1 inch panel mount Panel PC powered by the 12th Gen Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI applications. It focuses on stable hardware integration, low power consumption, fanless cooling and long lifecycle availability for industrial, OEM and system integrator deployments.

Key Features

• 12.1 inch 1024 x 768 panel mount display with 500 nits brightness
• 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, supports up to 32GB
• Integrated dual 2.5 Gbps Intel Ethernet
• Multiple I/Os including 2 x USB 3.2 Gen2x1, serial ports and optional HDMI 2.0
• 12 V DC power input; metal housing and fanless design

Product Highlights

• Balanced compute performance for multitasking and industrial control workloads
• Surface options: resistive touch or protection glass (non-touch) to suit operating environments
• Fanless architecture for reliable continuous operation and reduced maintenance
• Flexible mounting and expansion: panel mount standard, VESA optional, M.2 and SATA expansion options

Specifications (grouped)
Display

• Size: 12.1 inches
• Resolution: 1024 x 768
• Touch / Glass: resistive touch (optional); protection glass (optional)
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm

System

• Processor: Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• Memory: 8GB default; optional 16GB/32GB; 1 x SODIMM DDR5 4800MHz, up to 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x M.2 2280 M-Key (NVMe); 1 x SATA III for 2.5" drive (optional)
• Security: TPM 2.0
• Operating Systems: optional Windows 11 IoT Enterprise (64-bit), Windows 11 Pro, Linux Ubuntu 22.04
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 324 x 274 x 67 mm
• Cut out: 302 x 234.3 mm
• Weight: 2.6 kg
• Mounting: panel mount (default); VESA mount optional
• Enclosure: metal housing
• Cooling: fanless design

Environment

• Operating Humidity: 10%–90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key; 1 x M.2 2230 E-Key for Wi‑Fi
• Indicators & Controls: power and storage LEDs; brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100~240V AC to DC adapter (example: 12V 120W)
• Power cord, VESA screws, mounting clips

Power

• Rated input: 12V DC; adapter example: 12V 120W

Model / Brand

• Model: R12IAD3S-PMM2
• Brand: Winmate
