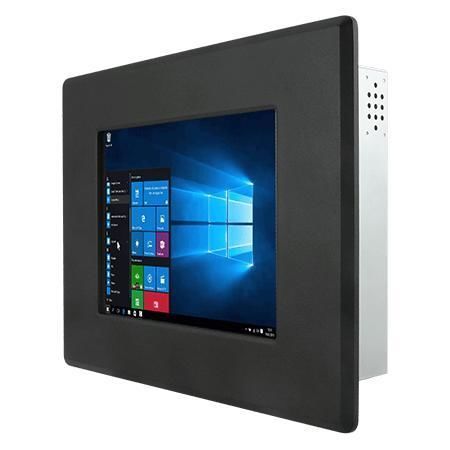

Resistive touch screen panel PC R08IE3S-PMU1

TFT LCD8.4"Intel® Celeron® N6211

Overview
Winmate R08IE3S-PMU1 is an 8.4-inch Intel® Celeron® N6211 panel-mount Panel PC engineered for machine control, factory automation and operator HMI. It offers configurable touch or protection glass, fanless low-power operation, multiple mounting options and industrial I/O for embedded and mission-critical installations.

Key features

• 8.4-inch TFT SVGA display (800 x 600)
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16GB DDR4 (4GB default; 8GB/16GB optional)
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0

Highlights

• Resistive touchscreen option or protection glass (no-touch) for flexible installation
• High brightness 600 nits, 600:1 contrast ratio and wide viewing angles
• Fanless design and low power consumption for reliable long-term operation
• Default panel-mount with optional VESA; rugged metal housing
• Security: TPM 2.0; Certifications: CE, FCC

Technical specifications

• Model: R08IE3S-PMU1
• Brand: Winmate
• Display size / resolution: 8.4-inch TFT SVGA, 800 x 600
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Brightness / Contrast / View angles: 600 nits / 600:1 / 75,75,60,70
• Active area: 170.4 x 127.8 mm
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB default; optional 8GB/16GB; 1 x SO-DIMM, max 16GB DDR4
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x 2.5 Giga LAN (Intel® Ethernet controllers)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (SATA III SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators / Controls: Power LED, Storage LED; Brightness adjustment knob; Power and Reset buttons
• Dimensions / Cut out / Weight: 275 x 216 x 62 mm / 237 x 177 mm / 1.9 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure / Cooling: Metal housing; fanless design
• Power: 12V DC input (2.5φ DC jack); recommended adapter 12V 50W; accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Operating / Storage environment: 0°C to 50°C / -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Security & Certification: TPM 2.0; CE, FCC
