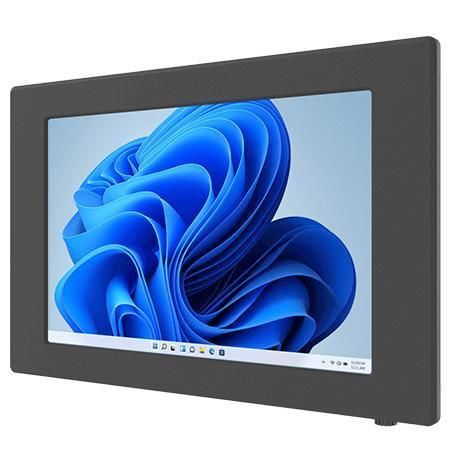

Resistive touch screen panel PC W10IAN3S-PMH2

TFT LCD10.1"Intel® Processor N100

Product Overview
The Winmate W10IAN3S-PMH2 is a 10.1-inch panel mount Panel PC designed for machine control, factory automation and operator HMI applications. Powered by Intel® Alder Lake‑N N150 (N100 family referenced) with integrated UHD graphics, it delivers stable compute and clear visuals for real‑time industrial use. The unit is engineered for embedded integration, long lifecycle availability and flexible I/O configurations.

Key Features

• 10.1‑inch WXGA TFT LCD (1280 x 800), 350 nits
• Intel® Alder Lake‑N N150 (Intel® Processor N100 family referenced)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• Dual Intel® 2.5 Gigabit Ethernet ports
• Multiple I/O: HDMI (optional), USB 3.2 Gen2 Type‑C (DP‑Alt), USB 3.2 Type‑A, USB 2.0, multiple COM ports
• Panel mount standard; VESA mount optional; fanless metal housing

Technical Specifications

• Display: 10.1 inches; 1280 x 800 WXGA; brightness 350 nits; contrast 800:1; viewing angles 85/85/85/85; active area 216.96 x 135.6 mm; resistive touch or protection glass optional
• System: Intel® Processor N100 family (N100/N150), up to 3.40 GHz; 1 x SO‑DIMM DDR5‑4800 (8 GB default, 16 GB option); M.2 2280 NVMe SSD default 128 GB (options to 4 TB); 1 x SATA III for 2.5" SSD/HDD if NVMe absent; TPM 2.0; OS options Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 24.04
• Mechanical: Dimensions 286 x 182 x 50.5 mm; cut out 252.5 x 162 mm; weight 1.7 kg; metal housing; fanless
• Power: 12 V DC input, adapter 12 V 50 W

I/O and Mounting

• USB: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C (DP Alt. mode)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 GbE RJ45
• Video: 1 x HDMI 2.0b (optional); Audio: 2 x speakers
• Expansion: M.2 2280 M‑Key (NVMe), M.2 2230 E‑Key (Wi‑Fi)
• Mounting: panel mount default; VESA optional; includes mounting clips and screws

Environment, Certifications & Options

• Operating temperature 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non‑condensing
• Certifications: CE, FCC
• Optional features: resistive touch, WLAN/BT module, additional storage, OS preinstallation

Applications & Ordering

• Recommended for machine control, HMI stations, production monitoring and embedded automation
• Order codes available by configuration: memory, NVMe capacity, touch option, OS and mounting accessories
