Resistive touch screen panel PC W07IE3S-PMT1
TFT LCD7"Intel® Celeron® N6211

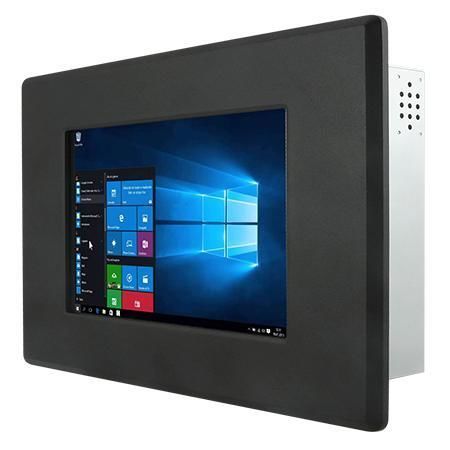

Resistive touch screen panel PC - W07IE3S-PMT1 - Winmate, Inc. - TFT LCD / 7" / Intel® Celeron® N6211
Resistive touch screen panel PC - W07IE3S-PMT1 - Winmate, Inc. - TFT LCD / 7" / Intel® Celeron® N6211
Resistive touch screen panel PC - W07IE3S-PMT1 - Winmate, Inc. - TFT LCD / 7" / Intel® Celeron® N6211 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen
Display size
7"
Processor
Intel® Celeron® N6211
Resolution
1024 x 600
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, in metal housing
Mounting
VESA mounting
Applications
industrial
Other characteristics
HMI
Memory size

Max.: 16 GB

Min.: 4 GB

Description

Product Overview
  • Winmate W07IE3S-PMT1 is a 7-inch panel-mount industrial Panel PC for machine control, factory automation and operator HMI applications. It integrates an Intel® Celeron® N6211 (Elkhart Lake) in a compact, metal, fanless housing for long lifecycle industrial deployments.
  • Surface options: resistive touch (optional) or protection glass without touch (optional).
  • Designed for low power consumption and effective heat dissipation; default panel mount with optional VESA mounting.


Key Features
  • 7-inch TFT SVGA LCD (1024 x 600)
  • Intel® Celeron® N6211 processor (up to 3.0 GHz)
  • 1 x SO-DIMM, up to 16GB DDR4 (4GB default; 8GB/16GB optional)
  • Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB; supports 1 x SATA III for 2.5" SSD/HDD (optional)
  • 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
  • IO: 2 x SATA III, 4 x COM (configurable), 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0
  • M.2 expansion: 1 x M.2 2242 B-Key (SATA III SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
  • TPM 2.0 security
  • OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)


Mechanical
  • Dimensions: 218 x 164.6 x 55.3 mm
  • Cut out: 192 x 133 mm
  • Weight: 1.5 kg
  • Mounting: Panel mount (default); VESA mount (optional)
  • Enclosure: Metal housing
  • Cooling: Fanless design


Environment
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C


Certification
  • CE
  • FCC


IO Ports & Control
  • USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
  • Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
  • LAN: 2 x 2.5 Giga LAN RJ45
  • Video: 1 x HDMI 2.0 (optional)
  • Audio: 2 x Speaker
  • Expansion: 1 x M.2 2242 B-Key (SATA III SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
  • Indicators: 1 x LED for power; 1 x LED for storage
  • Buttons: 1 x Power Button; 1 x Reset Button


Accessories & Power
  • Included/available accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
  • Power input: 1 x 12V DC, 2.5φ DC jack; adapter: 12V 50W (listed)


Additional Product Notes
  • Touch options: Resistive touch or protective glass when touch is not required.
  • Intended applications: machine control, factory automation, operator HMI and embedded industrial environments.


Caractéristiques / spécifications techniques
  • Model: W07IE3S-PMT1
  • Brand: Winmate
  • Display: 7.0 inches, 1024 x 600, 320 nits, 1000:1 contrast
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 1 x SO-DIMM, default 4GB; optional 8GB/16GB; max 16GB DDR4
  • Storage: 128GB SSD default; optional 256/512GB/1TB/2TB; 1 x SATA III for 2.5" SSD/HDD (optional)
  • Ethernet: 2 x Intel® Ethernet controller (2 x 2.5 Giga LAN)
  • Security: TPM 2.0
  • WLAN/BT: Optional via M.2 2230 E-Key
  • Mechanical: 218 x 164.6 x 55.3 mm; cut out 192 x 133 mm; weight 1.5 kg
  • Mounting: Panel mount default; VESA optional
  • Enclosure: Metal housing; fanless design
  • Environment: Operating 0°C–50°C; Storage -10°C–60°C; Humidity 10%–90% RH non-condensing
  • Certification: CE, FCC
  • IO: 2 x USB3.2 Gen2x1 (Type-A); 4 x USB2.0; serial ports as specified; 2 x 2.5G LAN; HDMI 2.0 optional; audio speakers
  • Power: 12V DC input (2.5φ DC jack); adapter 12V 50W
