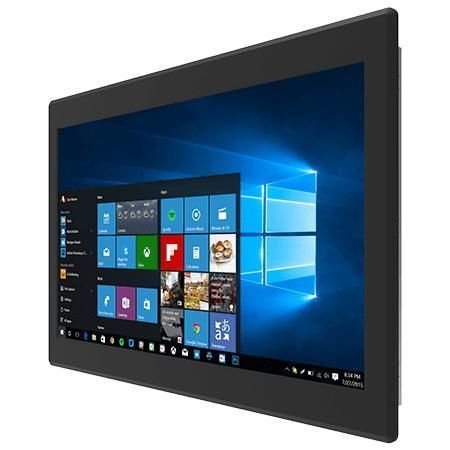

Resistive touch screen panel PC W22IT3S-PMA3

TFT LCD21.5"Intel® Core™ i5-1135G7

Overview
Winmate W22IT3S-PMA3 is a 21.5-inch panel-mount industrial Panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 processor with a fanless thermal design and offers flexible front-surface options and multiple mounting methods for industrial integration.

Key Features

• 21.5-inch TFT display, 1920 x 1080 (FHD), 250 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual Intel® Ethernet controllers (2 x 2.5 Gbps)
• M.2 Key M slot for M.2 2242 SATA III; optional M.2 2280 NVMe

Product Details

• Front surface options: resistive touch or protection (cover) glass when touch is not required.
• Storage & memory: default 128 GB SSD and 4 GB RAM; configurable up to M.2 NVMe and 32 GB RAM.
• Mounting: panel mount (standard) with supplied mounting clips; VESA mount optional for alternate installations.
• Indicators & controls: LED indicators for power and storage, brightness adjustment knob, power and reset buttons.
• I/O and expansion: 2 x USB 3.2 Gen2 Type-A, 1 x RS232/422/485 (default RS232) + 1 x RS232, optional HDMI 2.0, 1 x M.2 2230 E-Key for WLAN/BT module.
• Operating systems: Windows 11 IoT Enterprise, Windows 11 Pro, or Linux Ubuntu 22.04 (note: Wake on Touch not supported on Linux).

Certifications

• CE
• FCC

Technical specifications

• Display: 21.5 inches; Resolution 1920 x 1080; Brightness 250 nits; Contrast ratio 3000:1; Active area 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz, max 32 GB)
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• LAN: 2 x 2.5 Giga LAN (Intel®)
• Security: TPM 2.0
• Power: 12 V DC input (2.5φ DC jack); adapter 12 V 120 W
• Mechanical: Dimensions 534 x 349 x 82 mm; Cut-out 506 x 302 mm; Weight 7.2 kg; Metal enclosure
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
• Accessories: 100–240 V AC to DC adapter, power cord, VESA screws, mounting clips
