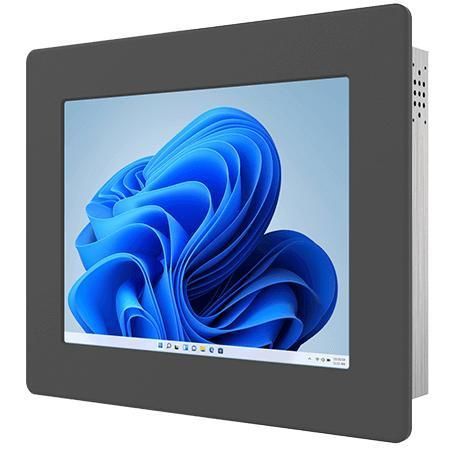

Resistive touch screen panel PC R10IAN3S-PMT2

TFT LCD10.4"Intel® Processor N100

Overview
The Winmate R10IAN3S-PMT2 is a 10.4-inch panel-mount industrial Panel PC for machine control, factory automation and operator HMI. Based on Intel® Alder Lake‑N processors (N100 default, N150 optional), it combines a 10.4" XGA display, fanless metal housing and versatile I/O for industrial deployments.

Key features

• 10.4” XGA TFT LCD (1024 x 768), 500 nits
• Intel® Alder Lake‑N N100 (default) or N150 (optional)
• 1 x SO‑DIMM DDR5‑4800 (up to 16 GB)
• Dual Intel® 2.5 Gigabit Ethernet
• Multiple I/O: USB Type‑C (DP‑Alt), HDMI (optional), USB 3.2 Gen2/Gen1, USB 2.0, COM ports
• Panel mount (default) and optional VESA mount

Display & ergonomics

• XGA 1024 x 768 resolution, 500 nits brightness, 1000:1 contrast
• Wide viewing angles 88/88/88/88 and active area 210.4 x 157.8 mm
• Optional resistive touch or protection glass (non‑touch)

System & storage

• Processor: Intel® N100 (default) up to 3.40 GHz; Intel® N150 (optional) up to 3.60 GHz
• Memory: 4 GB (default), configurable to 8 GB or 16 GB (1 x SO‑DIMM DDR5‑4800)
• Storage: NVMe SSD options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (available when NVMe not present)
• Security: TPM 2.0
• Optional OS: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 24.04 (note: Ubuntu does not support Wake on Touch)

I/O & expandability

• LAN: 2 x Intel® 2.5 Gigabit RJ45
• USB: 1 x USB 3.2 Gen2 Type‑C (DP Alt mode); 2 x USB 3.2 Gen1 Type‑A; additional USB 2.0 ports depending on configuration
• Serial: 1 x RS232/422/485 (selectable) + 1 x RS232
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x integrated speakers
• Expansion: 1 x M.2 2230 E‑Key slot for Wi‑Fi module
• Indicators & controls: power/storage LEDs, brightness adjustment knob, power and reset buttons
• Power input: 1 x 12V DC (2.5φ DC jack); adapter: 12V 50W

Mechanical

• Dimensions: 284 x 234 x 55 mm
• Cut‑out: 262 x 199 mm
• Weight: 2.4 kg
• Enclosure: metal housing, fanless design
• Mounting: panel mount default; VESA optional

Environment & certifications

• Operating temperature: 0°C to 50°C; storage: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non‑condensing
• Certifications: CE, FCC

Typical applications

• Machine control and automation
• Operator HMI panels
• Factory automation and embedded industrial systems

Technical specifications

• Model: R10IAN3S-PMT2
• Display: 10.4 inches, 1024 x 768 (XGA), 500 nits, 1000:1
• Processor: Intel® N100 (default) / N150 (optional)
• Memory: 4GB default; up to 16GB (SO‑DIMM DDR5‑4800)
• Storage: 128GB SSD default; NVMe up to 4TB; optional 1 x SATA III for 2.5" drives
• Ethernet: 2 x 2.5GbE (Intel®)
• USB & ports: USB-C (DP Alt), USB-A, USB 2.0, RS232/422/485, HDMI (opt.), M.2 Wi‑Fi slot
• Power: 12V DC input, adapter 12V 50W
• Dimensions / Cut‑out / Weight: 284 x 234 x 55 mm / 262 x 199 mm / 2.4 kg
• Certifications: CE, FCC
